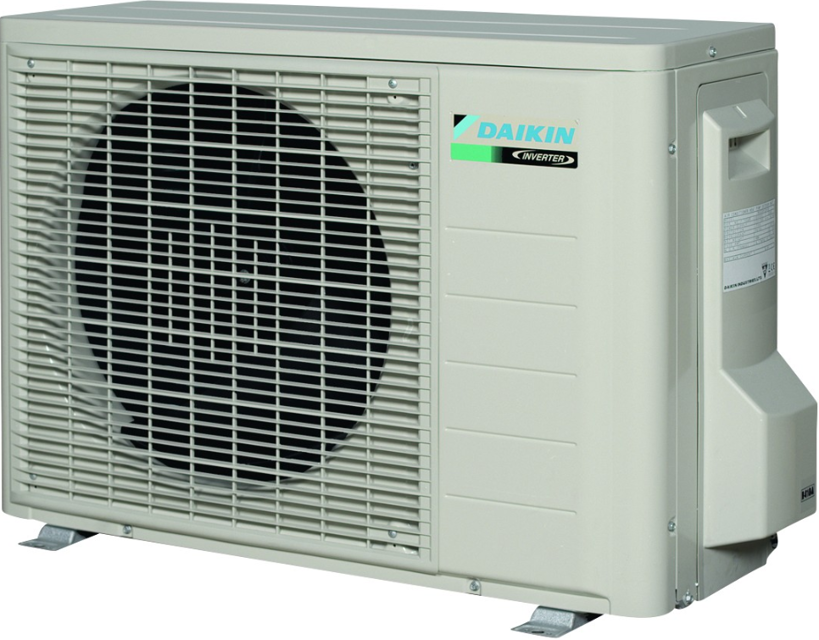

Daikin Outdoor Unit Heat Pump For Split System RXS35L2V1B

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor using multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from the PCB

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Indoor heat exchanger thermistor removed from the PCB

Measure the resistance of the indoor heat exchanger thermistor

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Is the voltage approximately 0 V?

If voltage is not approximately 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Compare the resistance with the table

Does the resistance indicate a short circuit?

Sign off on the main circuit short check

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

If there is no continuity between the pins, the EV coil is faulty

If the continuity is confirmed, the outdoor unit PCB is faulty

Sign off on the electronic expansion valve check

Warning: This check requires trained personnel with PPE!

Upload a photo of the power supply waveform between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero-cross?

Sign off on the power supply waveforms check

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If OK in both steps (1) and (2)
