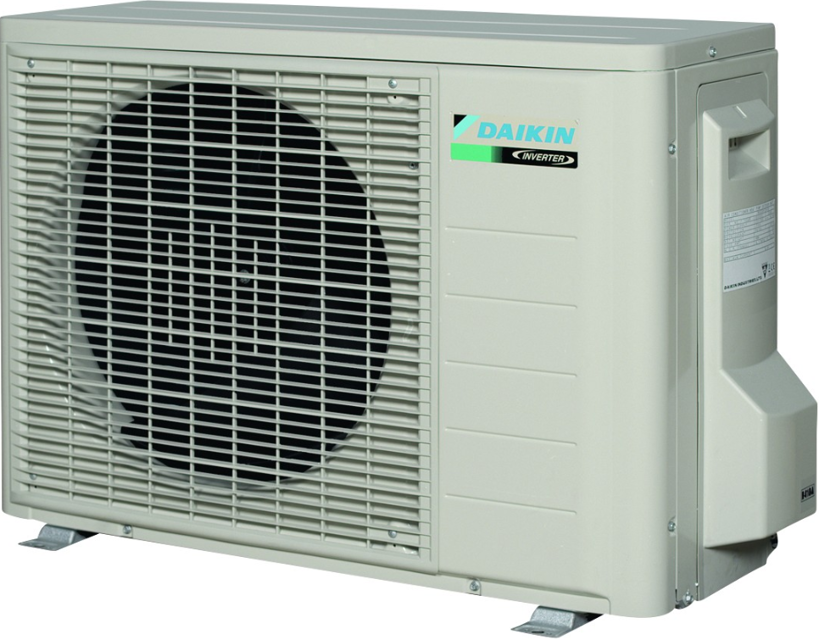

Daikin Outdoor Unit Heat Pump For Split System RXS35E2V1B

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If OK in both steps (1) and (2)

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (–) of the diode bridge (DB1)

If voltage is not about 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Compare the resistance with the table

Does the resistance indicate a short circuit?

Sign off on the main circuit short check

RK(X)S25/35E2V1B, RK(X)S25/35G2V1B, RXS25/35L3V1B

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

4 rotation pulses (0 ~ 15 VDC) are input at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

RK(X)S25/35G2V1B9, RXS25/35J2V1B, RXS25K3V1B, RXS35K2V1B, RXS25/35L2V1B

Voltage between the pins 10 - 11

Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 - 12, 10 - 13, when the fan motor is manually rotated once

Sign off on the rotation pulse check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Measure the resistance of the room temperature thermistor using multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from the PCB?

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor

Indoor heat exchanger thermistor removed from the PCB?

Measure the resistance of the indoor heat exchanger thermistor

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Continuity between the pins 1 - 6, 3 - 6, 2 - 5, 4 - 5 (between the pins 1 - 6, 2 - 6, 3 - 6, 4 - 6 for the harness 5P models)

If continuity is confirmed in step 3, the outdoor unit PCB is faulty

Sign off on the electronic expansion valve check
