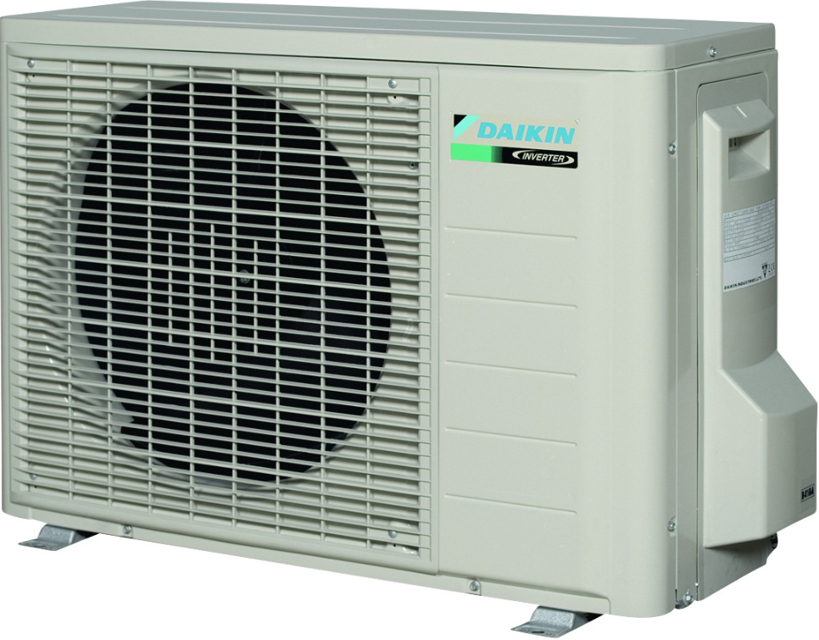

Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B
Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B

The Daikin Outdoor Unit Heat Pump for Split System RXS25K3V1B is a high-efficiency HVAC solution designed for optimal heating and cooling. This reliable unit offers advanced technology and energy-saving features, making it ideal for residential and commercial applications. Experience comfort and efficiency with Daikin's innovative design.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B

Daikin Outdoor Unit Heat Pump For Split System RXS25K3V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Heat Pump For Split System Model RXS25K3V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Power Supply Waveforms Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Upload a photo of the power supply waveform between No. 1 and No. 2 on the terminal board

Check mark

Is the power supply waveform a sine wave?

Check mark

Is there waveform disturbance near the zero-cross?

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Electronic Expansion Valve Check

Check mark

EV connector correctly connected to the PCB

Check mark

EV generates a latching sound when power is turned off and on again

Check mark

Continuity confirmed when connector is disconnected and checked with a multimeter

Check mark

Check the continuity between the pins

Check mark

If there is no continuity between the pins, the EV coil is faulty

Check mark

If the continuity is confirmed, the outdoor unit PCB is faulty

Check mark

Sign off on the electronic expansion valve check

Run this procedureArrow right

Rotation Pulse Check

Check mark

RK(X)S25/35E2V1B, RK(X)S25/35G2V1B, RXS25/35L3V1B Procedure

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 3 - 4

Check mark

Rotation command voltage between the pins 2 - 4

Check mark

4 rotation pulses (0 ~ 15 VDC) are input at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Check mark

RK(X)S25/35G2V1B9, RXS25/35J2V1B, RXS25K3V1B, RXS35K2V1B, RXS25/35L2V1B Procedure

Check mark

Voltage between the pins 10 - 11

Check mark

Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 - 12, 10 - 13, when the fan motor is manually rotated once

Check mark

Sign off on the rotation pulse check

Run this procedureArrow right

Hall IC Check

Check mark

1. Check the connector connection.

Check mark

2. With the power on, operation off, and the connector connected, check the following.

Check mark

(1) Output voltage of about 5 V between pins 1 and 3.

Check mark

(2) Generation of 3 pulses between pins 2 and 3 when the fan motor is operating.

Check mark

If NG in step (1) => Defective PCB => Replace the PCB (control PCB).

Check mark

If NG in step (2) => Defective Hall IC => Replace the fan motor.

Check mark

If OK in both steps (1) and (2) => Replace the PCB (control PCB).;

Run this procedureArrow right

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Power turned off?

Check mark

Install an inverter analyzer instead of a compressor

Check mark

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Check mark

Terminals removed from the compressor?

Check mark

Terminals connected to the terminals of the inverter analyzer without touching each other?

Check mark

Activate the power transistor test operation from the outdoor unit

Check mark

Pressed the forced cooling operation ON/OFF button for 5 seconds?

Check mark

Activate power transistor test operation from indoor unit

Run this procedureArrow right
