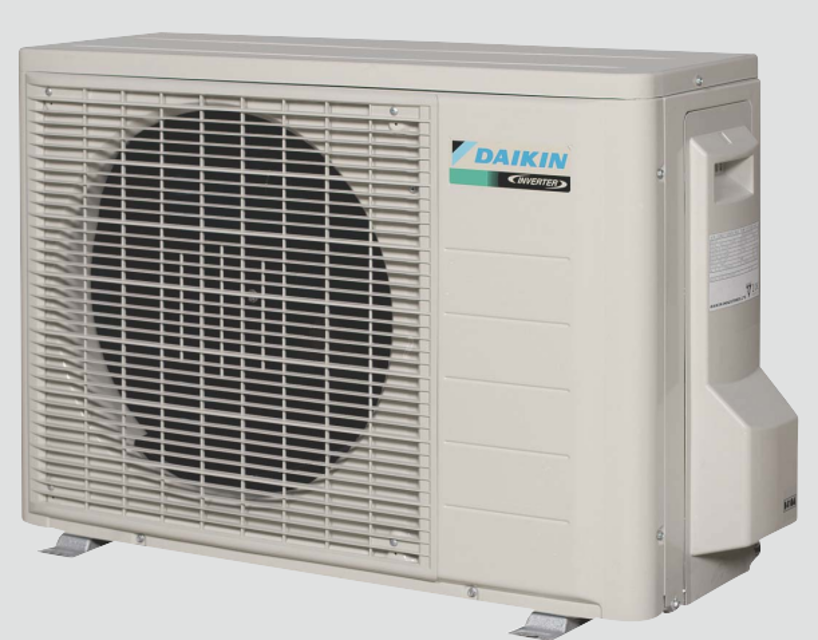

Daikin Outdoor Unit For Split System RXJ20M2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit For Split System Model RXJ20M2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Gas Leakage Check

WARNING: Do not mix any substance other than the specified refrigerant (R32) into the refrigeration cycle.

When refrigerant gas leaks occur, ventilate the room as soon and as much as possible.

R32, as well as other refrigerants, should always be recovered and never be released directly into the environment.

Use a vacuum pump for R32 or R410A exclusively. Using the same vacuum pump for different refrigerants may damage the vacuum pump or the unit.

Use tools for R32 or R410A (such as the gauge manifold, charging hose, or vacuum pump adapter).

When piping work is completed, it is necessary to evacuate the air and check for gas leakage.

If using additional refrigerant, perform air evacuating from the refrigerant pipes and indoor unit using a vacuum pump, then charge additional refrigerant.

Use a hexagonal wrench (4mm) to operate the stop valve rod.

All refrigerant pipe joints should be tightened with a torque wrench at the specified tightening torque.

Run this procedure

Pump Down Maintenance

Warning: This procedure is to be performed when relocating or disposing of the unit to protect the environment.

Valve cap removed from liquid stop valve and gas stop valve?

Forced Cooling Operation

Forced cooling operation carried out?

Wait for 5 to 10 minutes

Liquid stop valve closed with a hexagonal wrench after waiting?

Wait for 2 to 3 minutes

Gas stop valve closed and forced cooling operation stopped after waiting?

Forced Cooling Operation using the indoor unit ON/OFF switch

Run this procedure

Outdoor Unit For Split System Test

Measure the supply voltage

Supply voltage falls in the specified range

Select operation mode

In cooling mode, select the lowest programmable temperature; in heating mode, select the highest programmable temperature.

Trial operation may be disabled in either mode depending on the room temperature.

After trial operation is complete, set the temperature to a normal level (26°C to 28°C in cooling mode, 20°C to 24°C in heating mode).

For protection, the system disables restart operation for 3 minutes after it is turned off.

All functions and parts, such as louver movement, are working properly

The air conditioner requires a small amount of power in its standby mode. If the system is not to be used for some time after installation, shut off the circuit breaker to eliminate unnecessary power consumption.
