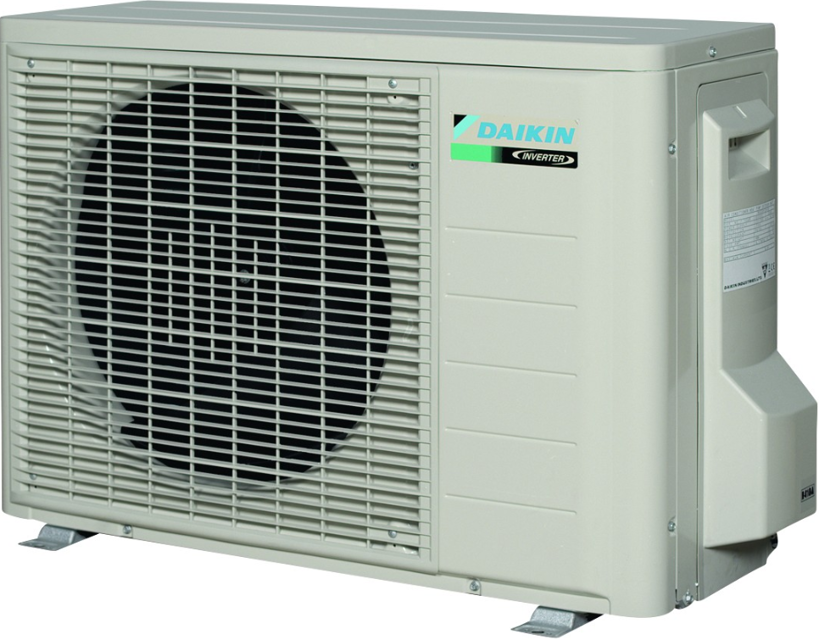

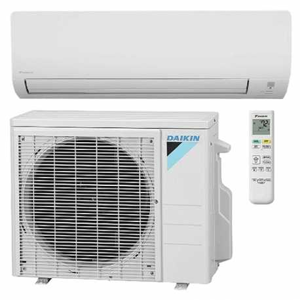

Daikin Outdoor Unit Cooling Only For Split System RKS35E2V1B

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity present when connector is disconnected and checked with a multimeter

Continuity between the pins 1 - 6, 3 - 6, 2 - 5, 4 - 5 (between the pins 1 - 6, 2 - 6, 3 - 6, 4 - 6 for the harness 5P models)

If continuity is confirmed in step 3, the outdoor unit PCB is faulty

Sign off on the electronic expansion valve check

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If OK in both steps (1) and (2)

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of the room temperature thermistor using multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from the PCB

Measure the resistance of the room temperature thermistor

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Indoor heat exchanger thermistor removed from the PCB

Measure the resistance of the indoor heat exchanger thermistor

Warning: This procedure requires trained personnel with PPE!

Install an inverter analyzer instead of a compressor

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Terminals removed from the compressor?

Terminals connected to the terminals of the inverter analyzer without touching each other?

Activate the power transistor test operation from the outdoor unit

Pressed the forced cooling operation ON/OFF button for 5 seconds?

Activate power transistor test operation from indoor unit

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before checking.

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Measure the resistance between the pins of the DB1 referring to the table below.

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

If the resistance is ∞ or less than 1 kΩ, short circuit occurs on the main circuit.

Sign off on the main circuit short check
