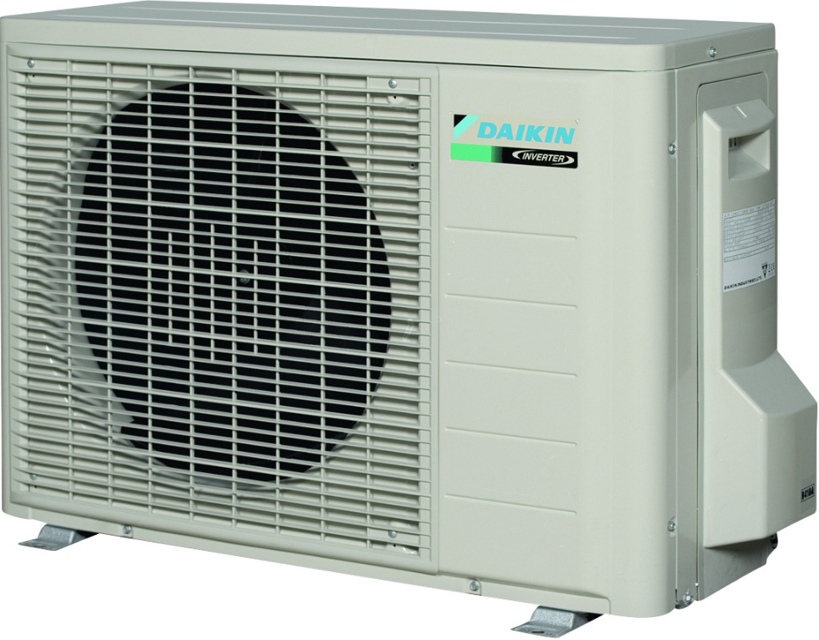

Daikin Outdoor Unit Cooling Only For Split System RKS25E2V1B

With the power on, operation off, and the connector connected, check the following

Output voltage of about 5 V between pins 1 and 3

Generation of 3 pulses between pins 2 and 3 when the fan motor is operating

If OK in both steps (1) and (2)

RK(X)S25/35E2V1B, RK(X)S25/35G2V1B, RXS25/35L3V1B

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

4 rotation pulses (0 ~ 15 VDC) are input at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

RK(X)S25/35G2V1B9, RXS25/35J2V1B, RXS25K3V1B, RXS35K2V1B, RXS25/35L2V1B

Voltage between the pins 10 - 11

Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 - 12, 10 - 13, when the fan motor is manually rotated once

Sign off on the rotation pulse check

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

If there is no continuity between the pins, the EV coil is faulty

If the continuity is confirmed, the outdoor unit PCB is faulty

Sign off on the electronic expansion valve check

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is about 0 V before checking.

Enter the voltage between (+) and (–) of the diode bridge (DB1)

If the voltage is not about 0 V, stop the procedure and report the issue.

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

If the resistance is ∞ or less than 1 kΩ, a short circuit occurs on the main circuit.

Sign off on the main circuit short check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of the room temperature thermistor using multimeter

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Room temperature thermistor removed from the PCB

Measure the resistance of the room temperature thermistor after removal

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Indoor heat exchanger thermistor removed from the PCB

Measure the resistance of the indoor heat exchanger thermistor after removal
