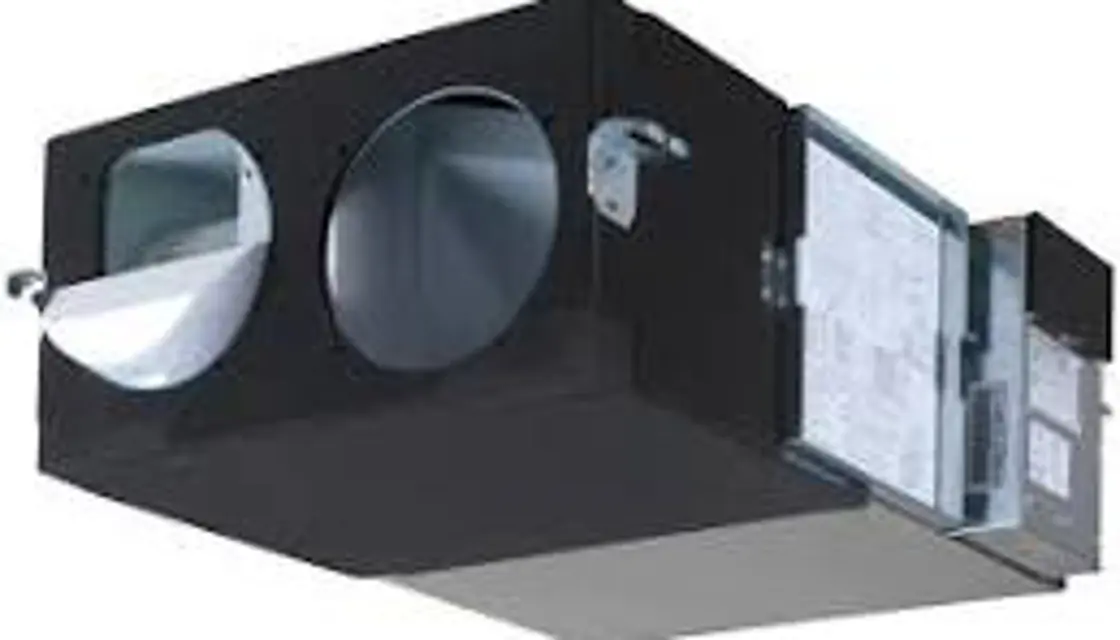

Daikin Heat Reclaim Ventilation Unit VAM500FC

Create an account to install this asset package.

Maintenance Plans for Daikin Heat Reclaim Ventilation Unit Model VAM500FC

Integrate maintenance plans directly into your work orders in MaintainX.

2 Yearly Air Filter Cleaning

WARNING: Be sure to turn off the OPERATION switch and disconnect the power. Only a qualified service person is allowed to perform maintenance. During operation, never check or clean the HRV. It may cause electrical shock and it is very dangerous to touch the rotating part.

Cleaning frequency: At least once every two years (for general office use),(clean more frequently if necessary.)

Go into the ceiling through the inspection hole, remove binding metal of maintenance cover and take it off.

Take out the heat exchange elements from the unit body.

To clean the air filter, lightly pat it with hand or remove dust with a vacuum cleaner. If excessively dirty, wash it in water.

If the air filter is washed, remove water completely and allow to dry for 20 to 30 minutes in the shade. When dried completely, install the air filter back in place.

Install the maintenance cover securely in place. Maximum allowed torque on the screws is 2,17 Nm.

CAUTION: Do not wash the air filter in hot water. Do not dry the air filter over a fire. Do not subject the air filter to direct sunlight. Do not use organic solvent such as gasoline and thinner on the air filter. Be sure to install the air filter after servicing. (Missing air filter causes clogged heat exchange element.)

Sign off on the air filter cleaning

Run this procedure

2 Yearly Heat Exchange Element Cleaning

Cleaning frequency: At least once every two years (for general office use),(clean more frequently if necessary.)

Use a vacuum cleaner to remove dust and foreign objects on the surface of the heat exchange element. (Refer to figure 7) - Use the vacuum cleaner equipped with a brush on the tip of the suction nozzle. - Lightly contact the brush on the surface of the heat exchanging element when cleaning. (Do not crush the heat exchange element while cleaning.)

Install the air filter securely in place.

Put the heat exchange element on the rail and insert it securely in place.

Install the maintenance cover securely in place.

CAUTION: Never wash the heat exchanger element with water;

Sign off on the heat exchange element cleaning

Run this procedure
