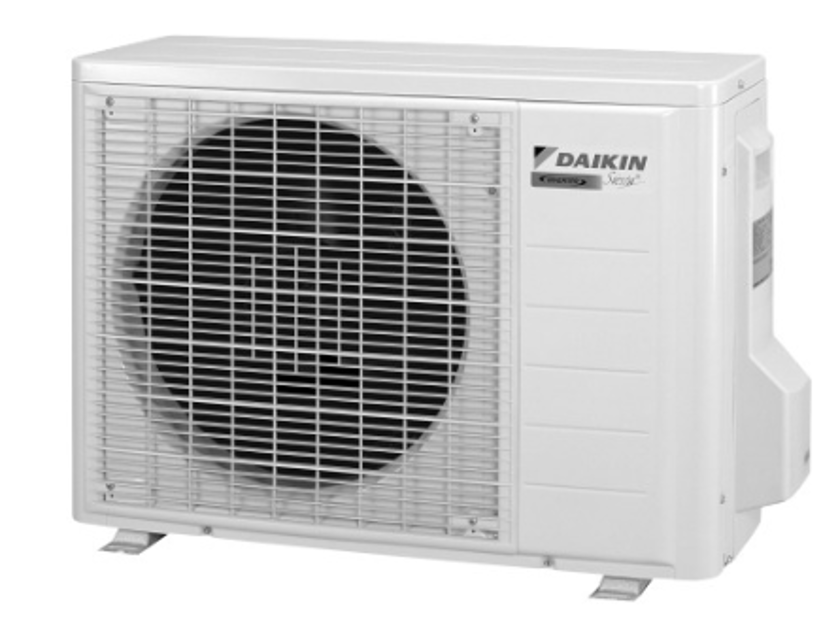

Daikin Cooling-Only Outdoor Unit RKS20G2V1B9

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding.

Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V?

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector disconnected from the outdoor unit PCB?

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement

Is the resistance measurement within the acceptable range?

Sign off on the power module check

Warning: This procedure requires trained personnel with PPE!

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Upload a photo of the measured waveform

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero cross?

Sign off on the power supply waveforms check

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 2 nuts of the compressor.

Warning: Be careful not to get yourself burnt with pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Disconnect the brazed part where is easy to disconnect and restore.

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor

Upload a photo of the tester reading

Select the model of the thermistor

Sign off on the thermistor resistance check

Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Take care not to cut your finger by the fins of the outdoor heat exchanger.

1 Remove the screw of the stop valve cover. Pull down the stop valve cover and remove it.

The stop valve cover is united with the shield plate.

When reassembling, make sure to fit the 5 hooks.

2 Remove the 2 screws and lift the top panel.
