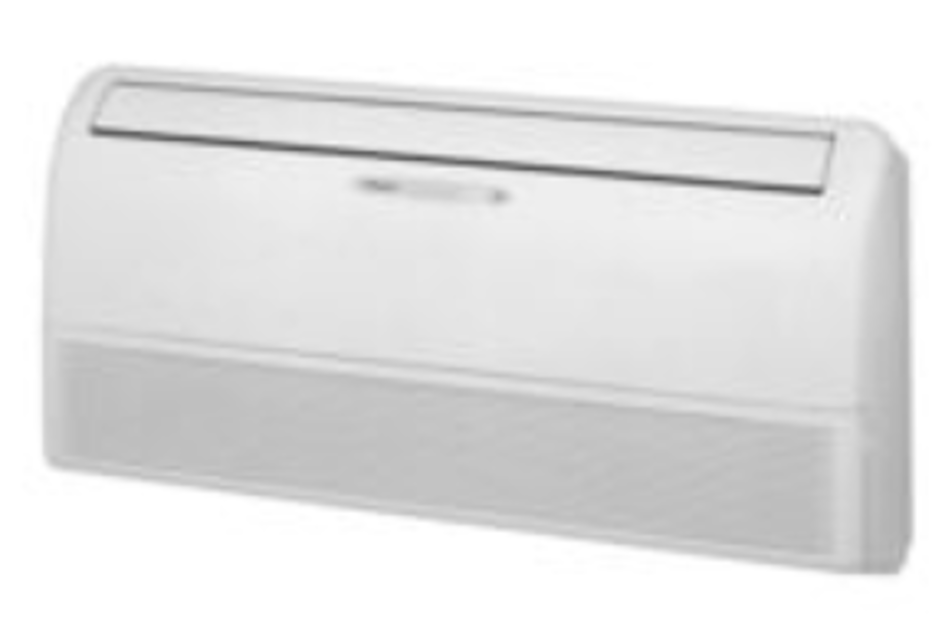

Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit FLXS35BAVMB9

Need answers fast?
Explore the manual using AI.

Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit FLXS35BAVMB9
Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit FLXS35BAVMB9

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit FLXS35BAVMB9

Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit FLXS35BAVMB9

Create an account to install this asset package.

Maintenance Plans for Daikin Ceiling Concealed Duct Type Heat Pump Indoor Unit Model FLXS35BAVMB9

Integrate maintenance plans directly into your work orders in MaintainX.

Power Supply Waveforms Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Is the power supply waveform between No. 1 and No. 2 on the terminal board a sine wave?

Check mark

Upload a photo of the waveform (Fig.1)

Check mark

Is there waveform disturbance near the zero-cross (sections circled in Fig.2)?

Check mark

Upload a photo of the waveform disturbance (Fig.2)

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Hall IC Check

Check mark

1. Check the connector connection.

Check mark

2. With the power on, operation off, and the connector connected, check the following.

Check mark

(1) Output voltage of about 5 V between pins 1 and 3.

Check mark

(2) Generation of 3 pulses between pins 2 and 3 when the fan motor is operating.

Check mark

If NG in step (1) => Defective PCB => Replace the PCB (control PCB).

Check mark

If NG in step (2) => Defective Hall IC => Replace the fan motor.

Check mark

If OK in both steps (1) and (2) => Replace the PCB (control PCB).;

Run this procedureArrow right

Electronic Expansion Valve Check

Check mark

EV connector correctly connected to the PCB

Check mark

EV generates a latching sound when power is turned off and on again

Check mark

Continuity confirmed when connector is disconnected and checked with a multimeter

Check mark

Check the continuity between the pins

Check mark

If there is no continuity between the pins, the EV coil is faulty

Check mark

If the continuity is confirmed, the outdoor unit PCB is faulty

Check mark

Sign off on the electronic expansion valve check

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Check mark

Measure the resistance of the room temperature thermistor using multimeter

Check mark

If the room temperature thermistor is soldered on a PCB, remove the PCB from the control PCB to measure the resistance

Check mark

Measure the resistance of the indoor heat exchanger thermistor

Check mark

If the connector of indoor heat exchanger thermistor is soldered on a PCB, remove the thermistor and measure the resistance

Check mark

Sign off on the thermistor resistance check

Run this procedureArrow right

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Power turned off?

Check mark

Install an inverter analyzer instead of a compressor

Check mark

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Check mark

Terminals removed from the compressor?

Check mark

Terminals connected to the terminals of the inverter analyzer without touching each other?

Check mark

Diagnose according to 6 LEDs lighting status

Check mark

LEDs status

Check mark

If all the LEDs are lit uniformly, the compressor is defective. Replace the compressor.

Run this procedureArrow right
