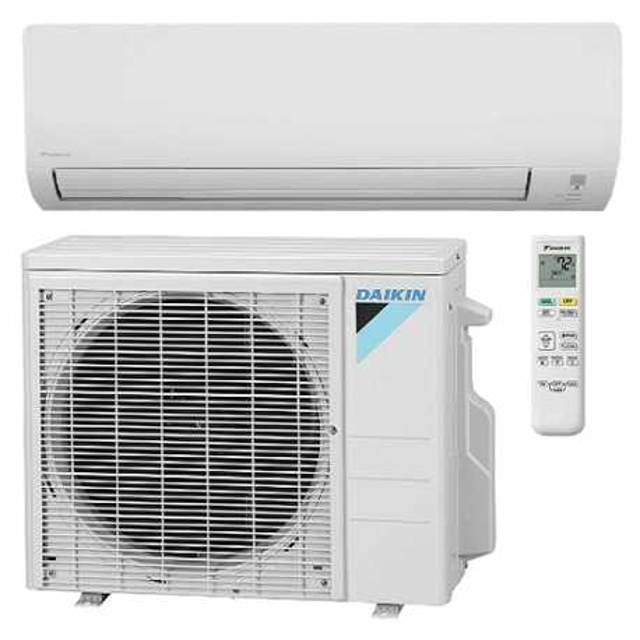

Daikin Air Conditioner FTKN18NMVJU

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminium fins of the indoor unit?

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters. Hold the recessed parts of the frame and unhook the 4 claws.

Clean or replace the titanium apatite photocatalytic air-purifying filters

Remove the filter from the filter frame and prepare a new one. Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter. Dispose of the old filter as non-flammable waste

Insert the titanium apatite photocatalytic air-purifying filters as they were. When attaching the filter, check that the filter is properly set in the tabs

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminium fins of the indoor unit?

Only neutral detergent may be used

NOTE! For cleaning, do not use any of the following

Avoid using the following for cleaning

Sign off on the front panel cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you wipe them with a soft cloth?

NOTE! For cleaning, do not use any of the following

Confirm you did not use any of the following for cleaning

Sign off on the cleaning procedure

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury.

Air filters cleaned with water or vacuum cleaner

If the dust does not come off easily, were the air filters washed with neutral detergent thinned with lukewarm water?

Titanium apatite photocatalytic air-purifying filter removed

NOTE! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzene, petrol and thinner, Polishing compounds, Rough materials such as a scrubbing brush.

• Before cleaning, be sure to stop the operation and turn off the circuit breaker

• Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

1. Open the front panel and pull out the air filters

2. Take off the titanium apatite photocatalytic air-purifying filters

• Hold the recessed parts of the frame and unhook the 4 claws.

3. Clean or replace the titanium apatite photocatalytic air-purifying filters

3.1 Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

• Do not remove the filter from the frame when washing with water
