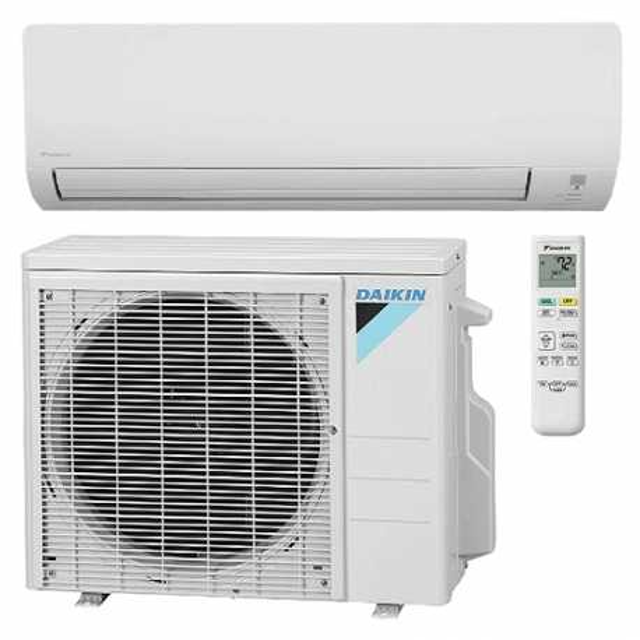

Daikin Air Conditioner FTK24NMVJU

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury.

Air filters cleaned with water or vacuum cleaner

NOTE! If the dust does not come off easily, wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade. Be sure to remove the titanium apatite photocatalytic air-purifying filter.

NOTE! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzene, petrol and thinner, Polishing compounds, Rough materials such as a scrubbing brush.

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminium fins of the indoor unit?

Open the front panel and pull out the air filters

Did you open the front panel and pull out the air filters?

Take off the titanium apatite photocatalytic air-purifying filters. Hold the recessed parts of the frame and unhook the 4 claws.

Did you take off the titanium apatite photocatalytic air-purifying filters?

Clean or replace the titanium apatite photocatalytic air-purifying filters. Remove the filter from the filter frame and prepare a new one. Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter. Dispose of the old filter as non-flammable waste.

Did you clean or replace the titanium apatite photocatalytic air-purifying filters?

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminium fins of the indoor unit?

Only neutral detergent may be used

NOTE! For cleaning, do not use any of the following

Avoid using the following for cleaning

Sign off on the front panel cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you open the front panel and pull out the air filters?

Did you take off the titanium apatite photocatalytic air-purifying filters by holding the recessed parts of the frame and unhooking the 4 claws?

Did you clean or replace the titanium apatite photocatalytic air-purifying filters?

Did you vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty?

After washing, did you shake off remaining water and let them dry in the shade?

Did you insert the titanium apatite photocatalytic air-purifying filters as they were?

When attaching the filter, did you check that the filter is properly set in the tabs?

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminium fins of the indoor unit?

Did you wipe the units with a soft cloth?

NOTE! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzene, petrol and thinner, Polishing compounds, Rough materials such as a scrubbing brush

Did you avoid using prohibited cleaning materials?

Sign off on the cleaning procedure
