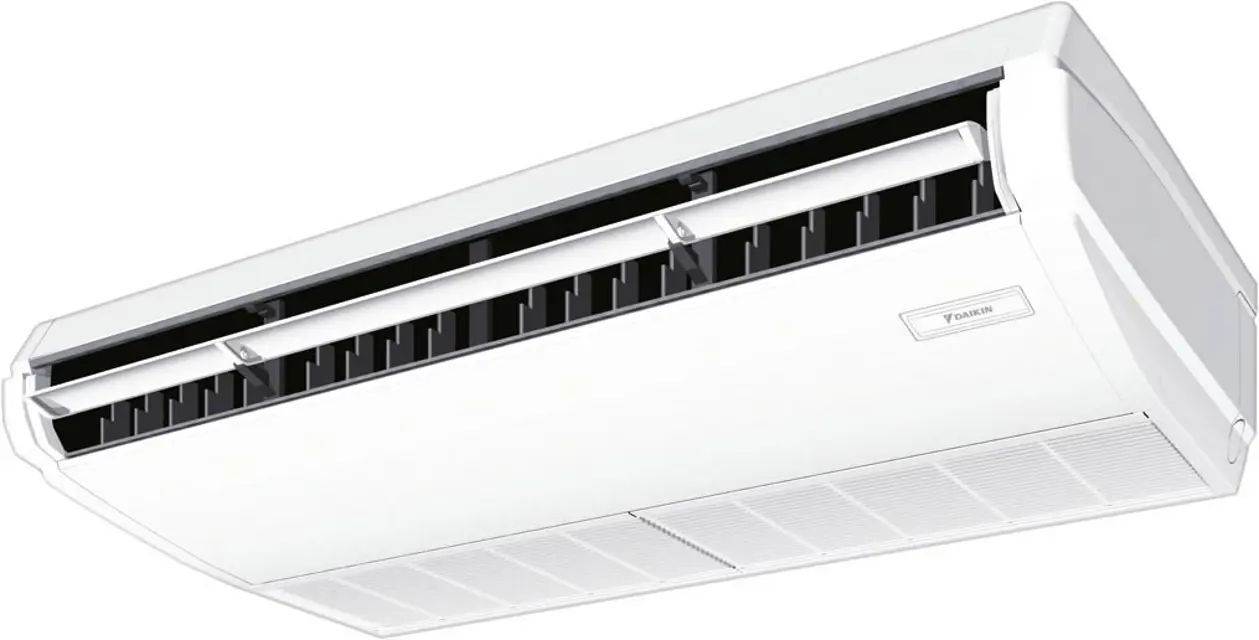

Daikin Air Conditioner FHA100AVEB99

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FHA100AVEB99

Integrate maintenance plans directly into your work orders in MaintainX.

Air Condinioner Cleaning

WARNING!

• Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner.

• Do not wipe the air conditioner with benzine or thinner.

It may cause cracks, electric shocks or a fire.

• Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION!

• Do not wash the air conditioner with water.

It may cause electric shocks or a fire due to leakage.

• Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker.

Run this procedure

Suction Grille Cleaning

WARNING: Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner. Do not wipe the air conditioner with benzine or thinner. It may cause cracks, electric shocks or a fire. Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION: Do not wash the air conditioner with water. It may cause electric shocks or a fire due to leakage. Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker. Unless the power supply is disconnected, it may cause electric shocks and injuries. When working at a high place, give caution to your footing. If the scaffold is unstable, it may cause injuries due to fall and stumbling.

NOTE: Do not remove the air filter unless for cleaning. It may cause failure. Do not attach substance (such as paper towels) other than the specified air filter to the air inlet. The performance may drop and cause freeze-up/water leakage.

Open the suction grille. Slide the knob to the arrow direction and slowly open the suction grille.

Remove the suction grille. Keeping the suction grille open, remove the strap. Keep holding the clips at the upper part of the suction grille and pull them to frontward.

Take out the air filter.

Clean the suction grille. Wash the suction grille with water or neutral detergent using a soft brush and then dry it.

Attach the air filter.

Attach the suction grille. Attach the grille in the reverse order mentioned 'Remove the suction grille'.

Run this procedure

1250 Hourly / 6 Monthly Air Filter Cleaning

WARNING!

• Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner.

• Do not wipe the air conditioner with benzine or thinner.

It may cause cracks, electric shocks or a fire.

• Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION!

• Do not wash the air conditioner with water.

It may cause electric shocks or a fire due to leakage.

• Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker.

Run this procedure

Air Outlet, Outside Panel and Remote Controller Cleaning

WARNING! Do not use flammable gas (such as hair sprays and insecticides) near the air conditioner. Do not wipe the air conditioner with benzine or thinner. It may cause cracks, electric shocks or a fire. Never put your fingers or rods in the air inlet, air outlet or horizontal blade. The fan is rotating at high speed, so you would get injured.

CAUTION! Do not wash the air conditioner with water. It may cause electric shocks or a fire due to leakage. Make sure to turn off the air conditioner when taking care of the air conditioner and disconnect the power supply breaker. Unless the power supply is disconnected, it may cause electric shocks and injuries. When working at a high place, give caution to your footing. If the scaffold is unstable, it may cause injuries due to fall and stumbling.

NOTE! Do not remove the air filter unless for cleaning. It may cause failure. Do not attach substance (such as paper towels) other than the specified air filter to the air inlet. The performance may drop and cause freeze-up/water leakage.

Air conditioner turned off and power supply disconnected?

Scaffold stable?

Air filter removed for cleaning?

Substance other than the specified air filter attached to the air inlet?

Air outlet, outside panel, and remote controller wiped with a dry soft cloth?

Stain wiped off with cloth dipped in neutral detergent diluted with water and twisted?

Run this procedure
