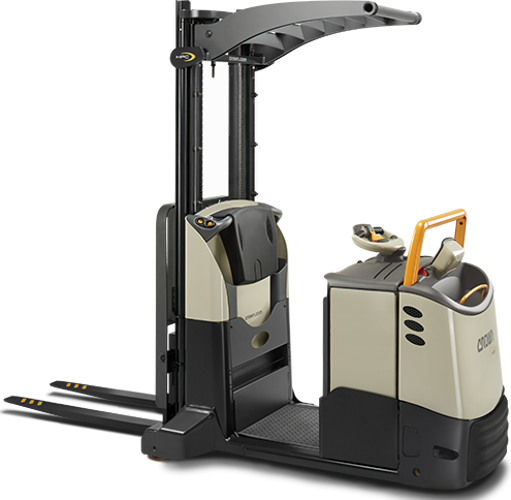

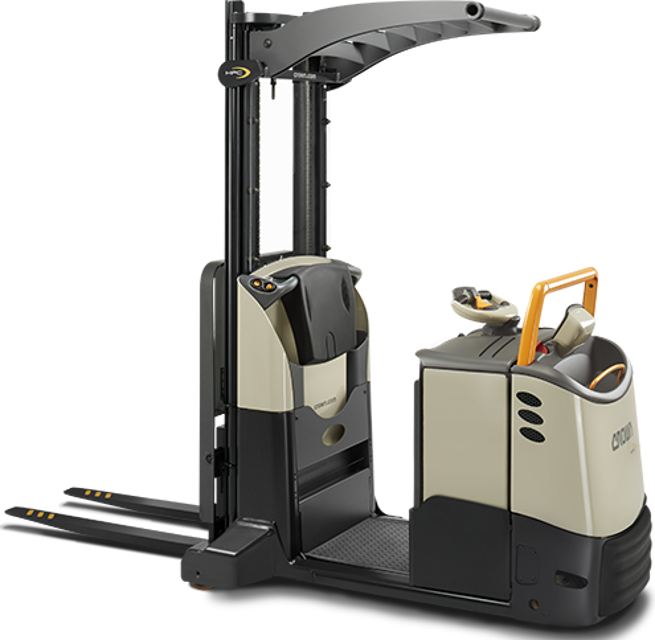

Crown Order Picker MPC 3040-1.2

Warning: Use caution during operational testing. Carry out the tests in an open area away from obstacles and other people. Watch out for people in the work area. Stay away from moving truck parts. Stop the truck as soon as you discover any problems. Have the problem rectified by a trained, authorized service technician before operating the truck.

Inspect Battery Latch visually. Check operation. Make sure the battery is secure

Check battery compartment for spilled acid

Check the insulation of the battery terminals and battery cell connectors

Check the battery connector and cables for damage, check contacts for burning

Perform checks when charging and replacing the battery

Sign off on the daily battery inspection

Warning: Adjusting the Seat Rest while traveling can result in accidents. Always stop the truck before adjusting the Seat Rest.

Move the seat rest down and move it into the required position

Pull the bar underneath the seat rest forward

Sign off on the seat rest maintenance

WARNING! Use caution during operational testing. Carry out the tests in an open area away from obstacles and other people. Watch out for people in the work area. Stay away from moving truck parts. Stop the truck as soon as you discover any problems. Have the problem rectified by a trained, authorized service technician before operating the truck.

Check the forks and the fork carriage for damage and cracks

Check the fork latches are working securely

Sign off on the daily forks inspection

WARNING! Use caution during operational testing. Carry out the tests in an open area away from obstacles and other people. Watch out for people in the work area. Stay away from moving truck parts. Stop the truck as soon as you discover any problems. Have the problem rectified by a trained, authorized service technician before operating the truck.

Check the lift chains for contamination and corrosion, and ensure they are adequately lubricated

Check the chain anchors for damage, cracks and corrosion

Check that the cotter pins in the chain bolt on the chain anchor are fitted and free of damage

Sign off on the lift chains inspection

Carry out the safety inspection each time you start work or when changing shift

Keep the truck clean. This will make it easier to check for damage

The first part of the safety inspection is carried out with the truck turned off. For the second part the truck must be turned on

DANGER! Risk of explosion and fire: Storage batteries emit gas during charging. This can collect and explode if exposed to sparks or open flames

Spilled fluids can be flammable

Do not use a open flame to check fluid levels

WARNING! Operating a defective truck can result in accidents and injury!
