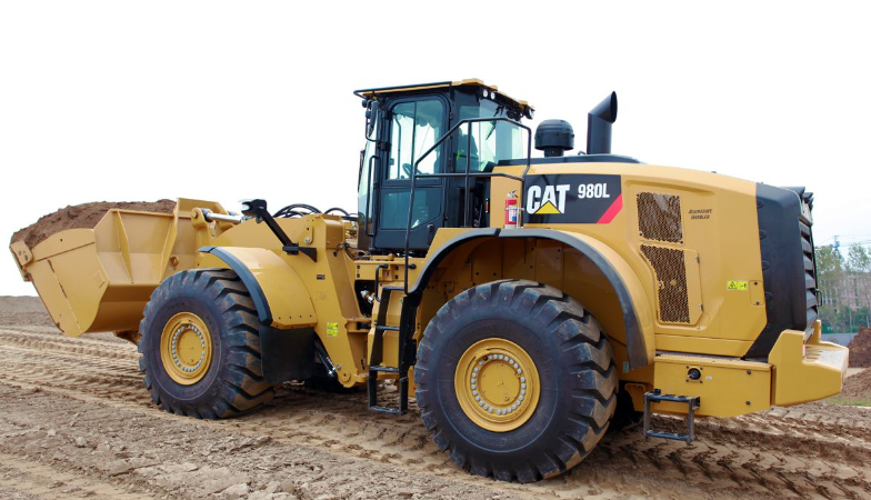

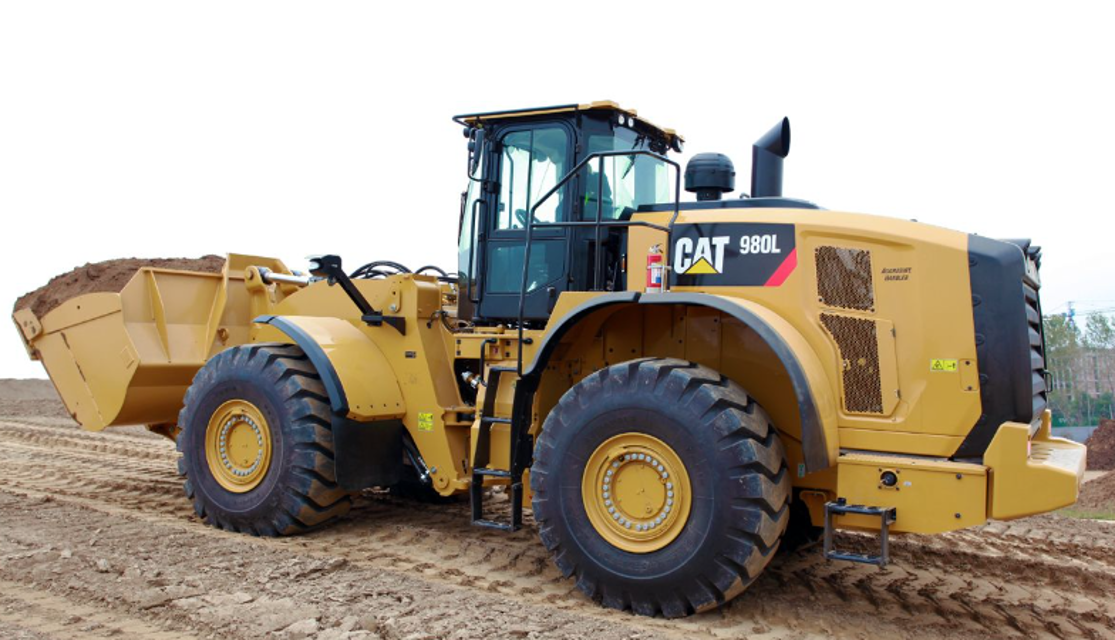

Caterpillar Wheel Loader 980L

Shims (62) and bearing cups (61) installed into center section (3) using Tooling (C)

Bearing cup (59) installed using Tooling (C) and a suitable press

Bearings (58) installed into front pump housing (27)

Lip seal (57) installed into retainer (55) using Tooling (C) and a suitable press

O-ring seal (56) installed onto retainer (55)

Retainer (55) and bolts (54) installed onto front pump housing (27) and tightened to a torque of 9.5 ± 0.2 N·m (84.1 ± 1.8 lb in)

Sleeves (53) installed into the swashplate

Piston (52) and retaining ring (51) installed onto actuator (47)

Retainer (50), spring (49), and retainer (48) installed onto actuator (47) using Tooling (D) and a suitable press
