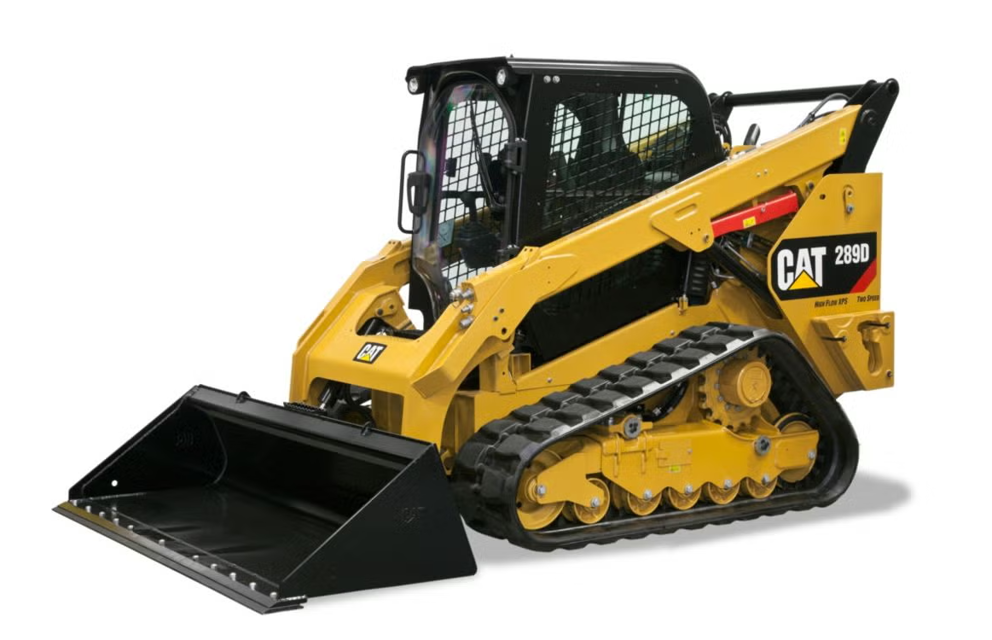

CAT Skid Steer Loader 289D

Warning: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

NOTICE: Mixing ELC with other products will reduce the effectiveness of the coolant. This could result in damage to cooling system components.

If Caterpillar products are not available and commercial products must be used, make sure they have passed the Caterpillar EC-1 specification for premixed or concentrate coolants and Caterpillar Extender.

Note: The machine was shipped from the factory with Extended Life Coolant (ELC) in the cooling system.

For information about the addition of Extender to your cooling system, see the Operation and Maintenance Manual, “Cooling System Coolant (ELC) Extender - Add” or consult your Cat dealer.

Drain the coolant whenever the coolant is dirty or whenever the coolant is foaming.

The radiator cap is located under the radiator guard on the top of the engine compartment.

Allow the machine to cool before you change the coolant.

Open the engine access door and raise the radiator guard. Refer to Operation and Maintenance Manual, “Access Doors and Covers”.

Inspect the track visually for damage or missing fasteners

Replace any grousers that are damaged

Replace any fasteners that are missing

Loosen the greaser with an appropriate wrench or socket to relax the tension on the track

Tighten the greaser and apply grease to achieve proper tension

Check the torque for the track grouser bolts and the master link bolts

Did you rotate the latch to free the cover from the ductwork without using excessive force?

Did you lift on the cover and remove the cover?

Did you turn the thumb screws until they are free from the duct?

Did you replace the element if it is damaged or if the element seal is damaged?

Position one final drive so that the oil fill/drain plug is at the bottom

Remove the oil plugs and allow the oil to drain into a suitable container

Check the drained oil for large metal chips or a significant number of metal particles

Clean the plugs and inspect the plugs. Replace a worn plug or a damaged plug

Position the final drive so that the oil fill/drain plug is at the top

Add oil through the opening of the oil fill/drain plug that is now at the top

Fill the final drive to the bottom of the opening for the oil check plug

Install the two oil plugs. Tighten the oil plugs to a torque of 27 ± 1 N·m (20 ± 0.7 lb ft)

Air Conditioner Condenser - Clean

Personal injury can result from air pressure.

Personal injury can result without following proper procedure. When using pressure air, wear a protective face shield and protective clothing.

Maximum air pressure at the nozzle must be less than 205 kPa (30 psi) for cleaning purposes.

The air conditioner condenser is attached to the engine access door.

Note: Blow compressed air through the core in the opposite direction of air flow to clean condenser.

Single Level Suspension (SLS) undercarriage

Dual Level Suspension (DLS) undercarriage
