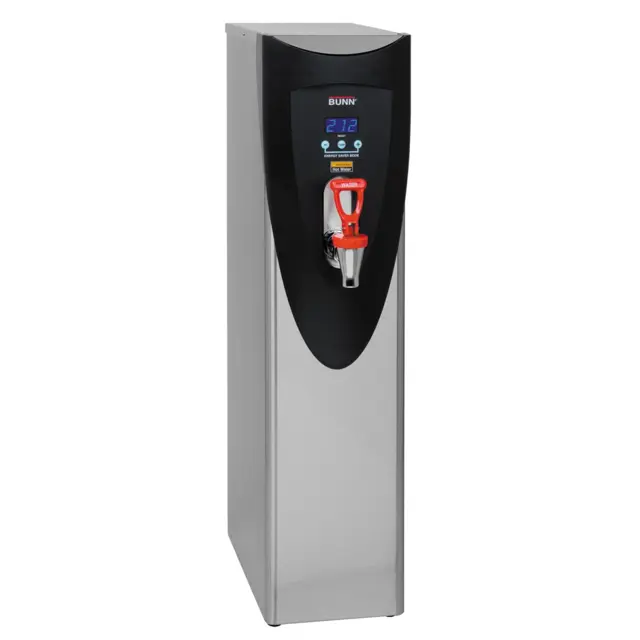

Bunn Hot Water Dispencer H5X-18-120

Disconnect the dispenser from the power source

Remove the top cover (3 screws) and front shroud assembly (4 screws)

Remove the top 2 screws and loosen 2 lower screws securing control panel to shroud

Disconnect switch wires from the CBA

Remove the large nut securing the switch

Installation in the reverse order

Sign off on the switch replacement

Disconnect the dispenser from the power source

Voltage across terminals 3 & 4 of the electronic control board

Check the dispenser wiring harness if voltage was not present as described

Remove the pink wire from terminal 5 of the electronic control assembly

Voltage across terminals 1 & 4 of the electronic control board

Disconnect the dispenser from the power source

Replace the electronic control board and the temperature sensor in the tank lid if voltage was not present as described

Remove all wires from the level control board

Remove two #8-32 screws holding level control board and mounting bracket to the component bracket

Install the new level control board and mounting bracket to the component bracket

Upload a photo of the reconnected wires

Sign off on the board replacement

Warning: Disconnect the dispenser from the power source before starting the test

Disconnect the black wire from the contactor coil to the limit thermostat and black wire from the red wire on the main harness on two wire 240V models

Voltage across the red wire and black wire

If voltage is not as described, check the wiring harness

Check for continuity between the left and right terminals on the contactor coil

If continuity is not present as described, replace the contactor

Voltage across the upper left terminal and the upper right terminal on the contactor

Warning: Disconnect the dispenser from the power source before starting the test

Voltage across terminals 3 & 4 of the electronic control circuit board within the specified range

Voltage across the tank heater terminals within the specified range

Was voltage present as described in the first test?

If voltage was not present as described, contact Bunn-O-Matic to order an electronic control board and temperature sensor for evaluation and proceed to next step

Replace the electronic control board

Voltage across the tank heater terminals within the specified range after replacing the electronic control board

Was voltage present as described in the second test?

If voltage was present as described, the temperature control of the system is operating properly. Return the new electronic control board or temperature sensor to Bunn-O-Matic for credit
