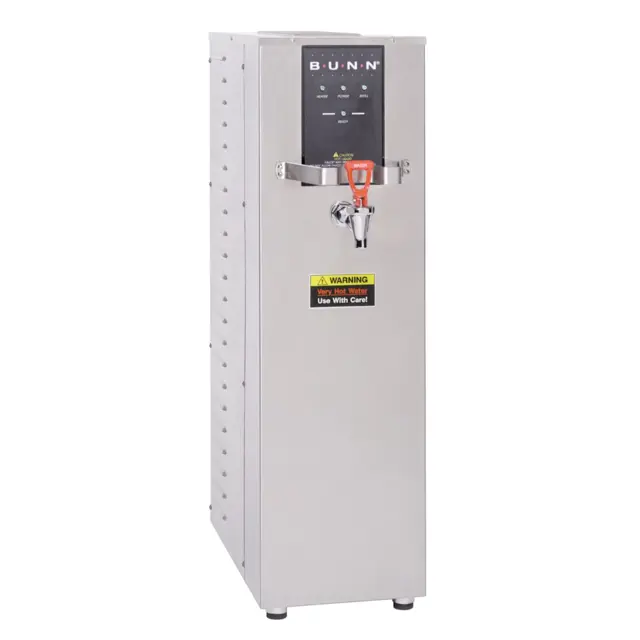

Bunn Bunn Hot Water Dispencer H10X-80-208 H10X-80-208

Warning: Disconnect the dispenser from the power source and turn-off the water supply to the dispenser

Pink wire removed from terminal 5 of the electronic control board

Voltage across the solenoid valve coil terminals

If voltage was not present as described, check the dispenser wiring harness

Both wires removed from the solenoid valve coil terminals

Continuity present across the solenoid valve coil terminals

If continuity is not present as described, replace the solenoid valve coil

Solenoid valve coil action checked

Disconnect the dispenser from the power source

Disconnect the thermistor from J5 on control board

Loosen the set screw and the two screws securing the two half blocks together. Remove thermistor assembly from overflow tube

Install new thermistor on tube and slide down until it contacts the flared end. NOTE: It's critical that the thermistor be centered directly under the tube opening

Snug the set screw so the block assembly does not move around easily

Connect the thermistor to J5 on control board

NOTE: DO NOT TEST OPERATION WITH PANELS REMOVED, AS AIR MOVEMENT CAN HINDER PROPER READINGS ON THERMISTOR

Sign off on the steam sensor replacement

Disconnect the dispenser from the power source

Remove the top cover (3 screws) and front shroud assembly (4 screws)

Remove the top 2 screws and loosen 2 lower screws securing control panel to shroud

Disconnect switch wires from the CBA

Remove the large nut securing the switch

Installation in the reverse order

Sign off on the switch replacement

Warning: Disconnect the dispenser from the power source before starting the test

Voltage across terminals 3 & 4 of the electronic control circuit board within the specified range

Voltage across the tank heater terminals within the specified range

Was voltage present as described in the first test?

If voltage was not present as described, contact Bunn-O-Matic to order an electronic control board and temperature sensor for evaluation and proceed to next step

Replace the electronic control board

Voltage across the tank heater terminals within the specified range after replacing the electronic control board

Was voltage present as described in the second test?

If voltage was present as described, the temperature control of the system is operating properly. Return the new electronic control board or temperature sensor to Bunn-O-Matic for credit

Warning: This procedure requires trained personnel with PPE!

Disconnect the dispenser from the power source

Voltage across terminals 3 & 4 of the electronic control board

Remove the pink wire from terminal 5 of the electronic control assembly

Voltage across terminals 1 & 4 of the electronic control board
