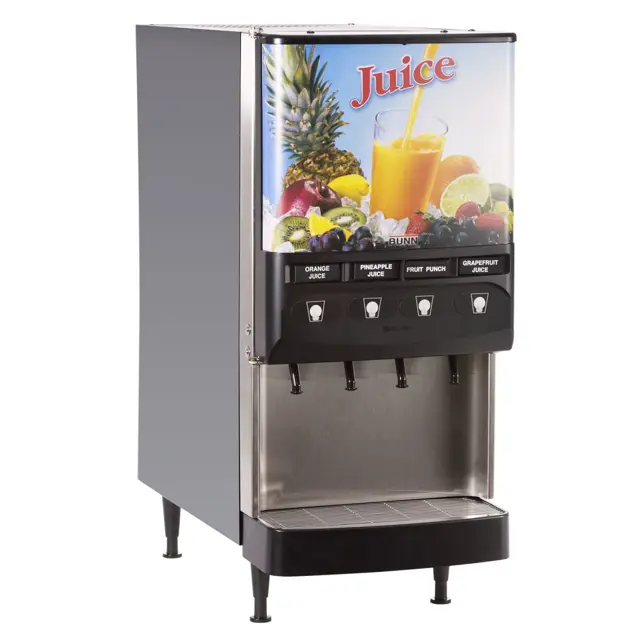

Bunn Dispenser JDF-4S

Remove and wash the dispense nozzle(s), drip tray and drip tray cover in a mild detergent solution. Rinse thoroughly

Use brush (00674.0000) to clean inside and oring area on dispense nozzles

Wipe splash panel, areas around dispense nozzle(s), and refrigerated compartment with a clean, damp cloth

Use brush and a mild detergent solution to clean inside dispense area where dispense nozzles are removed. Rinse

Sign off on the dispenser parts cleaning

Remove all concentrate from the dispenser and store in a separate refrigerated compartment

Fill clean empty concentrate container(s) with approximately 32 oz. (946 ml) of hot tap water (approximately 140 Deg F (60 Deg. C)

Load the containers of hot water into the dispenser (just like concentrate)

Place an empty container under the dispense nozzles

Press and hold the dispense button at each station until the stream out of the nozzles runs clear (about 30 seconds)

Once this is completed, remove the container(s) and empty

Remove each dispense nozzle and mixing element and run under hot tap water to remove excess pulp

Prepare 2.5 gal. (9.46 L) of sanitizing solution

Place nozzle(s) and mixing elements) in a separate 1-quart container of sanitizing solutions and mix thoroughly. Allow the parts to soak for 2 minutes

Tools required: 32 oz. (946 ml) minimum empty container

Open dispenser door. Lift up on product containers and remove them from the machine

Close the door, place an empty container under the dispensing nozzle

Dispense from each station until clear water flows from the dispense nozzle

Open dispenser door and reconnect all product containers

Sign off on the dispenser cleaning

Clean Condenser Coils and Filter

Removable filter cleaned in warm soapy water?

Used a soft bristle brush to clean the build up of dirt in the condenser?

Check water level in ice bath Annually. Top off if needed

Removed all product containers and placed them in a refrigerated environment?

Disconnected all connections to ambient products from the bottle adapter?

Rinsed all dispense stations using steps outlined in 'DAILY RINSE PROCEDURE'?
