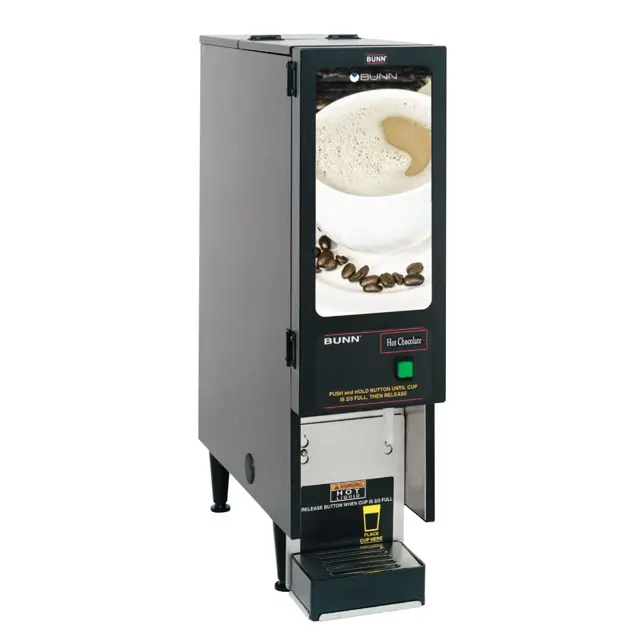

Bunn Dispenser FMD-1

CAUTION - The dispenser must be disconnected from the power source throughout these steps

Disconnect the dispenser from the power source

Open front door and place tank heater switch in the 'OFF' (upper) position

Shut-off and disconnect the incoming water supply

Gently remove one of the grommets from the tank lid

Insert a tube to the bottom of the tank and syphon ALL of the water out

NOTE - The dispenser must be refilled using the INITIAL FILL & HEAT steps before reconnecting to the power source

Sign off on the maintenance procedure

Replace Light Bulbs as required

Note: The cleaning instructions noted above are for non-dairy sugar based food products.

When dispensing any other food product, the cleaning cycle for the whipping chamber assembly and ejector elbow must be performed daily.

Sign off on the dispenser cleaning

Warning: Do NOT clean this equipment with a water jet device

Clean the dispenser with a damp cloth rinsed in any mild, non-abrasive, liquid detergent

Rinse out Whipper Chambers by placing RINSE/RUN switch in the 'RINSE' position and activating DISPENSE switches

Turn elbow up, remove Hoppers, refill with product and replace hoppers into dispenser

Empty Drip Tray and wash in a solution of dish detergent

Sign off on the daily dispenser cleaning

Replace Whipper Shaft Seal Kit 3 monthly or as needed

Sign off on the dispenser replacement
