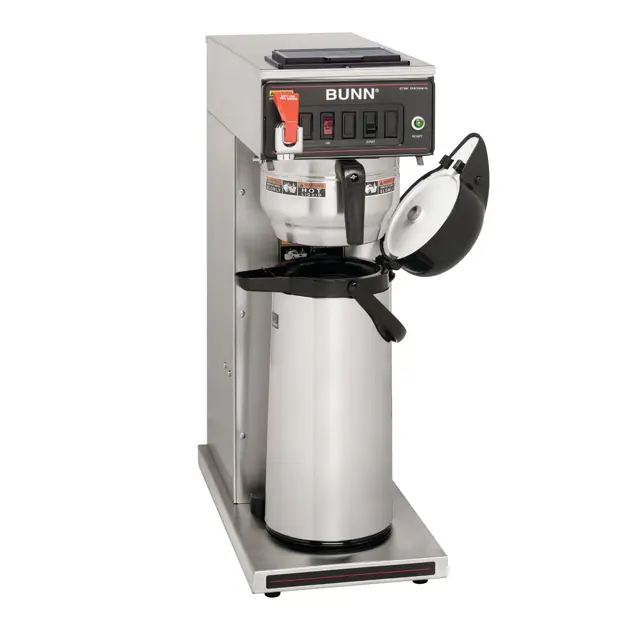

Bunn Coffee Brewer 23001.0000

Disconnect the water supply tube from the fill basin

Remove the tank inlet fitting securing the fill basin to the tank lid, remove fill basin and tank inlet gasket. Set all three parts aside for reassembly

On brewers with faucet shut-off water supply to the brewer and disconnect the inlet and outlet water lines to the faucet coil assembly

Disconnect the black wire on the limit thermostat from the tank heater switch. On late model brewers also disconnect the blue wire from the limit thermostat to the control thermostat

Disconnect the black wire and the white or red wire from the tank heater terminals

Remove sprayhead and the hex nut securing the sprayhead tube to the hood. Set aside for reassembly

Remove the eight #8-32 nuts securing the tank lid to the tank

Remove the tank lid with limit thermostat, sprayhead tube, tank heater, coil assembly and control thermostat w/bracket (early models only)

Remove the two hex nuts securing the tank heater to the tank lid. Remove tank heater with gaskets and discard

Warning: Disconnect the brewer from the power source before starting the procedure

Disconnect the white/blue and white/green wires from the solenoid valve

Press the start switch with the ON/OFF switch in the ON upper position

Voltage across the white/blue and white/green wires

If voltage is not as described, refer to Wiring Diagrams and check brewer wiring harness

Check for continuity across the solenoid valve coil terminals

If continuity is not present as described, replace the Solenoid Valve

Check the solenoid valve for coil action

Remove wires from control thermostat leads

Remove the thermostat capillary bulb by firmly pulling-up on the capillary at the tank lid

Remove the one #8-32 screw securing the control thermostat to the component bracket in the trunk

Slide the grommet to the line 4.5\ above the bulb on the new capillary tube"

Insert the capillary bulb through the hole in the tank lid and press the grommet firmly and evenly so that the groove in the grommet fits into the tank lid

Carefully bend the capillary tube so that the tube and bulb inside the tank are in the vertical position

NOTE - The capillary tube must be clear of any electrical termination and not kinked

Early Models: Using two #8-32 screws secure the control thermostat inside the hood

Late Models. Using one #8-32 screw secure the control thermostat to the component bracket inside the trunk

Disconnect the brewer from the power source

Use the white or red wire to the terminal block and the white/red, brown/black or violet wire to the 'ON/OFF' switch

Check voltage across the white or red and white/ red, brown/black or violet with a voltmeter with the 'ON/OFF' switch in the 'ON' position

Disconnect the brewer from the power source

If voltage is present as described, proceed to #5. If voltage is not present as described, check brewer wiring harness

Check the continuity across the two terminals on the warmer element

If continuity is present as described, reconnect the white or red and white/red, and brown/black or violet wires on the warmer element. If continuity is not present as described, replace the warmer element

Sign off on the warmer element test

Remove the #8-32 screw securing circuit board to the mounting bracket

Remove circuit board and spacers (as required)

Remove all wires from the timer

Attach all wires to the replacement timer board prior to installation to the component mounting bracket. Refer to FIG. 21 when reconnecting the wires

Install new circuit board with spacers (as required) to the component mounting bracket

Adjust the timer as described below

Sign off on the timer replacement
