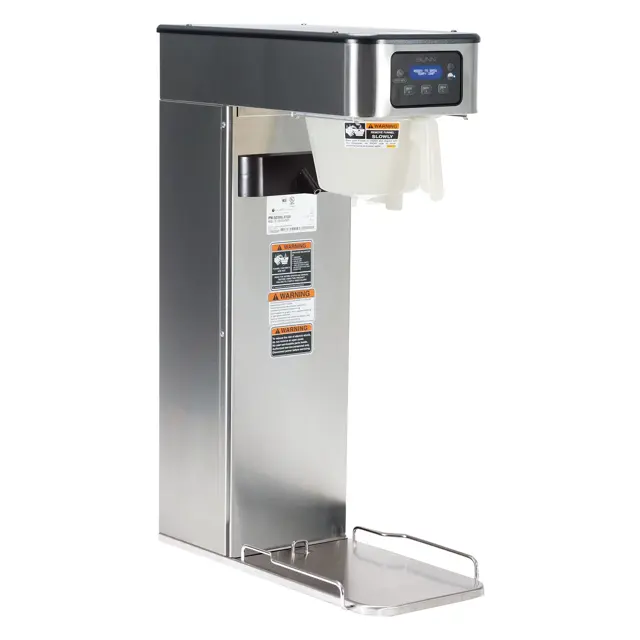

Bunn Brewer ITB

NOTE - Any buildup on the sprayhead may restrict water flow, and impact your brewing. For consistently great tea and coffee, clean sprayhead weekly with sprayhead cleaning tool (#38227.0000). Upon visual inspection it may appear that light passes through all holes in the sprayhead, but a thin film of residue can pass light and still impede water flow

Use the pointed end of sprayhead cleaning tool to remove any mineral deposits from the sprayhead holes

Insert the long end of sprayhead cleaning tool into the sprayhead fitting, and rotate several times to remove any mineral deposits from the fitting

Sign off on the sprayhead cleaning

Warning: This maintenance check requires trained personnel with PPE!

White shutoff clamp on the long hose closed

Hose clamp and hose disconnected from inlet solenoid or check valve

End of the drain hose placed in a container with minimum capacity

White clamp released to drain water from the tank

Hose replaced onto solenoid (or flow control) and black clamp tightened

Note: Do not tighten white clamp!

Remove all the quick disconnects (QCD) from all the B.I.B. containers

Fill a suitable pail or bucket with a warm soapy tap water solution. (140° F)

Submerge all disconnects (gas and liquid) in the soapy solution and then clean them using a nylon bristle brush. (Do not use a wire brush). Rinse with clean water

Prepare approximately five (5) gallons of Kay-5 (or equivalent) sanitizing solution with at least 100 ppm of available chlorine in 120° F water

Rinse the B.I.B. disconnects (QCD's) in the sanitizing solution

Attach special sanitizing fittings to each B.I.B. disconnect (QCD’s)

Place all the B.I.B. disconnects (QCD's) into the pail of sanitizing solution

Press and hold the left hidden switch until the display reads: 'SanitizeSweetnr?' Press 'YES'. Next screen will ask 'CONTAINER READY?'

Press 'YES'. Allow solution to flow from dilution nozzle for a few seconds

CAUTION - DO NOT KEEP BREWED ICED TEA OVERNIGHT. THE SERVER MUST BE CLEANED DAILY

Remove and thoroughly clean the entire brew funnel. The funnel tip and screen must be free from any tea particles or residue. Reassemble the funnel

Remove and thoroughly rinse the sprayhead. The holes must be open and clear of any mineral deposits. Wipe the sprayhead panel clean with a damp cloth

The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Do NOT clean this equipment with a water jet device

Sign off on the daily brewer cleaning
