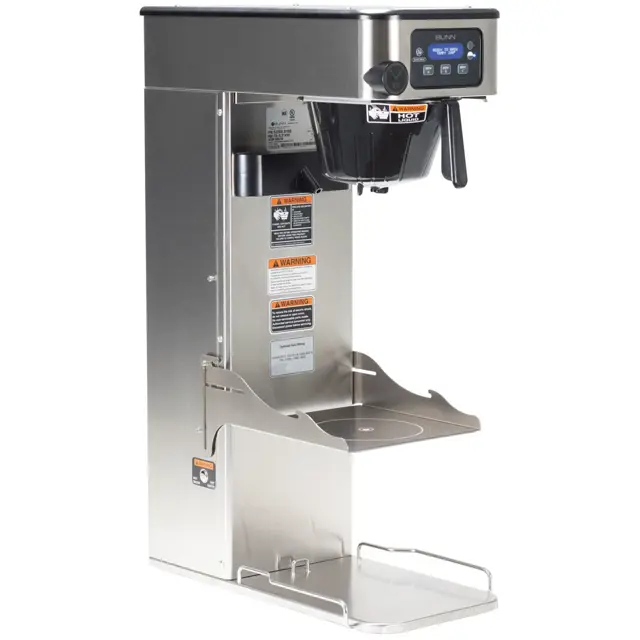

Bunn Brewer 52200.0100

Create an account to install this asset package.

Maintenance Plans for Bunn Brewer Model 52200.0100

Integrate maintenance plans directly into your work orders in MaintainX.

Brewer Maintenance

Drain brewer tank

Remove front access cover

Close the white shutoff clamp on the long hose between tank and inlet solenoid

Disconnect the hose clamp and hose from inlet solenoid or check valve

Place all tore in the origin cantan for minimum capacity of 2. gallons (7.5 L) IT/TCB

Release the white clamp to drain water from the tank

When tank is empty, replace the hose onto solenoid (or flow control) and tighten the black clamp

NOTE: Do not tighten white clamp!

Replace the access cover

Run this procedure

Brewer Sweetener Cleaning

Remove all the quick disconnects (QCD) from all the B.I.B. containers

Fill a suitable pail or bucket with a warm soapy tap water solution. (140° F)

Submerge all disconnects (gas and liquid) in the soapy solution and then clean them using a nylon bristle brush. (Do not use a wire brush). Rinse with clean water

Prepare approximately five (5) gallons of Kay-5 (or equivalent) sanitizing solution with at least 100 ppm of available chlorine in 120° F water

Rinse the B.I.B. disconnects (QCD's) in the sanitizing solution

Place all the B.I.B. disconnects (QCD's) into the pail of sanitizing solution

Press and hold the left hidden switch until the display reads: 'SanitizeSweetnr?' Press 'YES'. Next screen will ask 'CONTAINER READY?'

Press 'YES'. Allow solution to flow from dilution nozzle for a few seconds

Press any brew switch to stop. Display will read 'SOAKING' and count down from 15 minutes. Display will now read 'SOAP PURGE'

Run this procedure

1 Daily Brewer Cleaning

Remove and thoroughly clean the entire brew funnel

The funnel tip and screen must be free from any tea particles or residue

Reassemble the funnel

Remove and thoroughly rinse the sprayhead

The holes must be open and clear of any mineral deposits

Wipe the sprayhead panel clean with a damp cloth

NOTE - Any buildup on the sprayhead may restrict water flow, and impact your brewing. For consistently great tea and coffee, clean sprayhead weekly with sprayhead cleaning tool (#38227.0000). Upon visual inspection it may appear that light passes through all holes in the sprayhead, but a thin film of residue can pass light and still impede water flow.

Remove sprayhead from brewer

Use the pointed end of sprayhead cleaning tool to remove any mineral deposits from the sprayhead holes

Run this procedure
