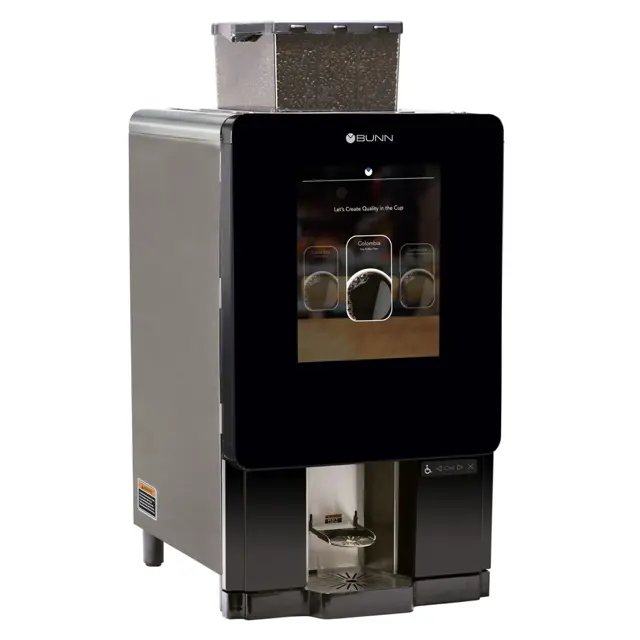

Bunn Brewer 44400.0200

Warning: Ensure the machine is turned off and unplugged before starting the cleaning process.

Brew Funnel in the upper position?

Rubber Hose disconnected from the Brew Funnel?

Funnel removed from the funnel arms?

Upload a photo of the cleaned funnel

Funnel reinstalled under the Coffee Chute?

Metal Pins placed on the Flat Springs?

Funnel snapped into the Funnel Arms?

Rubber Hose reconnected to the funnel inlet fitting?

Warning: Do not use any abrasive materials for cleaning.

Cleaned the exterior surfaces with a damp cloth rinsed in mild, non-abrasive, liquid detergent?

Wiped down the exterior surfaces of the dispenser with a soft, dry cloth to maintain the luster of the finish?

Washed the stainless steel interior surfaces of the dispenser with warm, soapy water and rinsed with warm, clear water?

If the water is hard, wiped the dispenser using a dry soft cloth, to prevent spotting?

Sign off on the Brewer General Cleaning

Remove the powder mixing chambers, steam traps, frothers and mixing chamber bases

Remove the dispense hoses from the dispense nozzle assembly

Clean all parts removed in warm soapy water. Use the provided cleaning brush (PN 26367.0000) to clean bores and orifices. Rinse in cold water

Prepare one-gallon (3.8 liter) of sanitizing solution with at least 100 ppm of available chlorine in 120°F (48.9°C) water. Soak all cleaned parts in sanitizing solution for 5 minutes, then allow to air dry

Rinse cleaning brush, dip in sanitizing solution, and brush the bore of dispense nozzles

NOTE: Repeat this procedure for each nozzle separately

When reassembling parts, be sure to align arrow on frother disk with flat on whipper motor shaft, and rotate tab on whipper base clock wise to the vertical position to lock mixing chamber

Close the front door to resume normal operation

Warning: Use only the cleaning tablets provided with this unit. (PN 42933.0001)

Cleaning Tablet inserted into Brew Funnel

Note: The cleaning process can take up to 5 minutes to complete. If for any reason the cleaning process needs to be halted, press the STOP button

Cleaning cycle completed without pressing STOP button

Machine reset and returned to the beginning CLEAN screen

Progress bar and next cleaning procedure notice provided

Install filter paper roll and route the filter paper through the tractor drive

Pull end of paper between the Brew Funnel and Brew Box

Continue paper over the top spindle, then on the left side of the middle spindle. Feed the paper in front of the pick-up (bottom) spindle with the handle

Flip the handle a quarter turn to the left

Place the paper in the slot that goes the length of the pick-up spindle

With the paper inserted into the slot of the bottom spindle, push the spindle in, then down a quarter turn to the right

Close the door, and return to the SERVICE ACCESS screen by pressing and holding the BUNN logo at the top of the screen for 4 seconds
