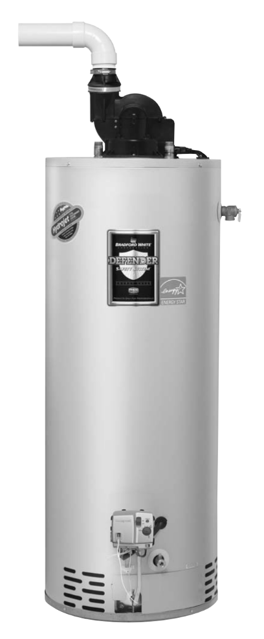

Bradford White Water Heater M4XRTW50T6FBN

Need answers fast?
Explore the manual using AI.

Bradford White Water Heater M4XRTW50T6FBN
Bradford White Water Heater M4XRTW50T6FBN

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Bradford White Water Heater M4XRTW50T6FBN

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Bradford White Water Heater M4XRTW50T6FBN

Bradford White Water Heater M4XRTW50T6FBN

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model M4XRTW50T6FBN

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly Burner and Pilot Visual Inspection

Check mark

Burner Inspection and Air Shutter Adjustment

Check mark

Ensure inner door and burner components are cool before inspection

Check mark

Inspect pilot and main burner for proper operation and debris accumulation

Check mark

Is the water heater vent within the allowable vent length?

Check mark

Measure the gas pressure to ensure it is within specification

Check mark

Is the pilot flame fully engulfing the spark/flame sensor?

Run this procedureArrow right

Blower Temperature Switch Testing

Check mark

Blower Temperature Switch Testing

Check mark

Position power switch on gas control to the “OFF” position.

Check mark

Remove the three screws from control access cover on blower and remove cover.

Check mark

Locate blower temperature switch.

Check mark

Cool switch to below 130°F.

Check mark

Is there continuity between the switch terminals using a multi-meter set to the ohms setting?

Check mark

Do exhaust gas temperatures rise to or above 165°F?

Check mark

Do switch contacts open when exhaust gas temperatures rise to or above 165°F?

Check mark

Common causes for high exhaust temperature

Run this procedureArrow right

Blower Maintenance

Check mark

Blower Removal

Check mark

Position gas control power switch to the 'OFF' position.

Check mark

Unplug blower power cord from wall outlet.

Check mark

Disconnect vent system from exhaust adapter on top of blower.

Check mark

Remove exhaust adapter from blower and retain for use on new blower.

Check mark

Unplug cord sets from blower.

Check mark

Remove the three blower mounting screws using a ¼" nut driver.

Check mark

Remove blower with gasket from water heater.

Check mark

Blower Installation

Run this procedureArrow right

Pressure Switch Testing

Check mark

Pressure Switch Testing

Check mark

Position power switch on gas control to the “OFF” position.

Check mark

Remove the three screws from control access cover on blower assembly and remove cover.

Check mark

Carefully remove pressure switch from blower housing.

Check mark

Disconnect wire leads from pressure switch.

Check mark

Use a multi-meter set to the ohms setting and check across pressure switch terminals with blower off.

Check mark

Are switch contacts open? (no electrical continuity)

Check mark

If switch contacts are open

Check mark

Position gas valve power switch to the “ON” position and adjust thermostat to call for heat.

Run this procedureArrow right

Blower Testing

Check mark

Blower Testing

Check mark

Position gas control power switch to 'ON' position and adjust control to call for heat.

Check mark

Remove the three screws from control access cover on blower assembly and remove cover.

Check mark

Does blower energize within 2 minutes?

Check mark

If blower does not energize within 2 minutes, does it run for 30 seconds and shut down?

Check mark

Is there 115 VAC at wall outlet?

Check mark

Check power cord for damage.

Check mark

Repair or replace power cord if damaged.

Check mark

Replace blower if necessary.

Run this procedureArrow right

Parts for Bradford White Water Heater M4XRTW50T6FBN

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Gas Control Service Tool

239-45991-00

Gas Control Service Tool

239-45991-00

Gas Control Service Tool

239-45991-00
