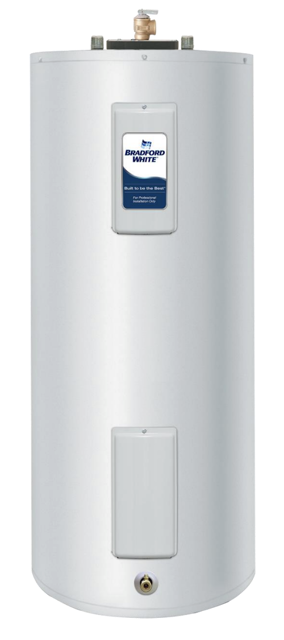

Bradford White Water Heater LE230LN3-3

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model LE230LN3-3

Integrate maintenance plans directly into your work orders in MaintainX.

Heating Element Ground Testing

Testing For Heating Element Short Circuit To Ground

Turn off power to water heater

Remove access cover(s) from front of water heater

Remove insulation and plastic cover from thermostat

Disconnect wires from heating element(s)

Set multi-meter to “ohms” setting

Touch one probe of multi-meter to either screw terminal of heating element and the other on the element flange

Run this procedure

ECO High Limit Testing

High Limit (ECO) Testing

Check voltage across terminals L1 & L4 upper thermostat

Is rated voltage present?

If rated voltage NOT present

Turn power 'OFF' to water heater and firmly press ECO reset button on thermostat(s)

Turn power 'ON' and recheck voltage across terminals L1 & L4 of upper thermostat

Is rated voltage present after reset?

If rated voltage IS present after reset

Check the following

Run this procedure

Diptube Inspection

Diptube Inspection and Replacement

Turn power 'OFF' to water heater

Turn off cold water supply to heater

Close drain spigot and remove hose

Disconnect inlet nipple from plumbing system

Remove inlet nipple/dip tube from the water heater using an appropriate wrench

Visually inspect inlet nipple/dip tube for cracks and blockages

Check hydro-jets near the bottom of the dip tube for blockages

Ensure anti-siphon hole is free of blockages

Run this procedure

Anode Inspection

Anode Inspection and Replacement

WARNING — Heater components and stored water may be HOT when performing the following steps in this procedure. Take necessary precaution to prevent personal injury.

Turn power 'OFF' to water heater.

Turn off cold water supply to heater.

Close drain spigot and remove hose.

Disconnect outlet nipple from plumbing system.

With an appropriate wrench, remove outlet nipple/anode from the water heater. Use caution not to damage nipple threads.

Visually inspect outlet nipple/anode for signs of depletion.

Is the depletion ½ of the original anode diameter or is any of the steel core exposed?

Run this procedure

Non-Simultaneous Three Phase Thermostat Testing

Double Element, Non-Simultaneous, Three Phase Operation

WARNING — High voltage exposure. Use caution to avoid personal injury during this procedure.

Ensure thermostats are reset to their original temperature settings as found prior to thermostat testing.
