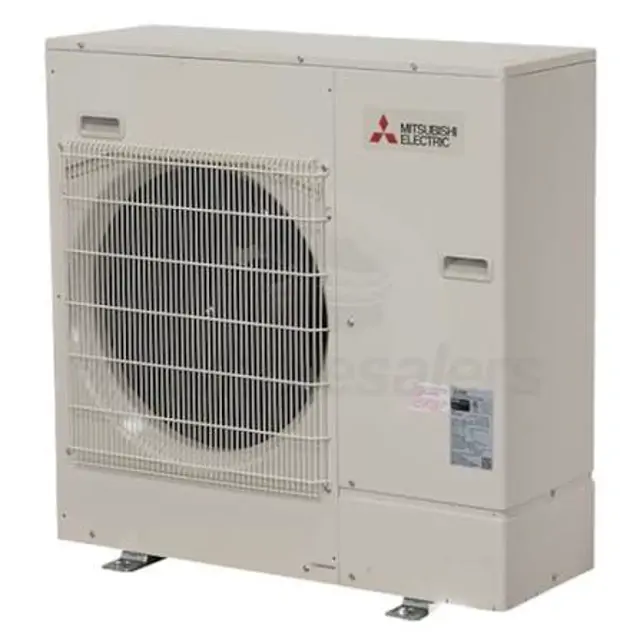

Mitsubishi HVAC Unit PUZ-A18NHA3
Create an account to install this asset package.
Maintenance Plans for Mitsubishi HVAC Unit Model PUZ-A18NHA3
Integrate maintenance plans directly into your work orders in MaintainX.
HVAC Unit Inspection
Pre-Inspection Checks
Verify installation and connections
Check for issues
Impedance Measurement
Measure impedance between ground and power supply terminal block (L1, L2) on outdoor unit
Ensure 500V Megger is not used on indoor/outdoor connecting wire terminal block (S1, S2, S3) and remote controller terminal block (1, 2)
Pre-Test Run Setup
Ensure test run switch (SW4) is set to OFF before turning on power supply
Turn on power supply 12 hours before test run to protect compressor
Emergency Operation Check
Pre-Operation Check
Ensure there is no abnormality in the outdoor unit other than specified errors.
Are there any error codes other than the specified ones?
Emergency Operation Setup
Set the emergency operation switch (SWE) on the indoor controller board.
Refer to the electrical wiring diagram of the indoor unit.
Operation Limitations
Acknowledge that the air-conditioner will operate continuously and cannot be controlled by remote.
Is the temperature control disabled during emergency operation?
Parts for Mitsubishi HVAC Unit PUZ-A18NHA3
Access the parts list for your equipment in MaintainX.
Fan Motor
R01 E47 221
Propeller Fan
R01 E07 115
Nut
R01 E08 097
Compressor SNB130FPBM1 Including Rubber Mount
T92 570 280
Strainer
R01 31L 450
Fan Motor
R01 E47 221
Propeller Fan
R01 E07 115
Nut
R01 E08 097
Compressor SNB130FPBM1 Including Rubber Mount
T92 570 280
Strainer
R01 31L 450
Fan Motor
R01 E47 221
Propeller Fan
R01 E07 115
Nut
R01 E08 097
Compressor SNB130FPBM1 Including Rubber Mount
T92 570 280
Strainer
R01 31L 450
