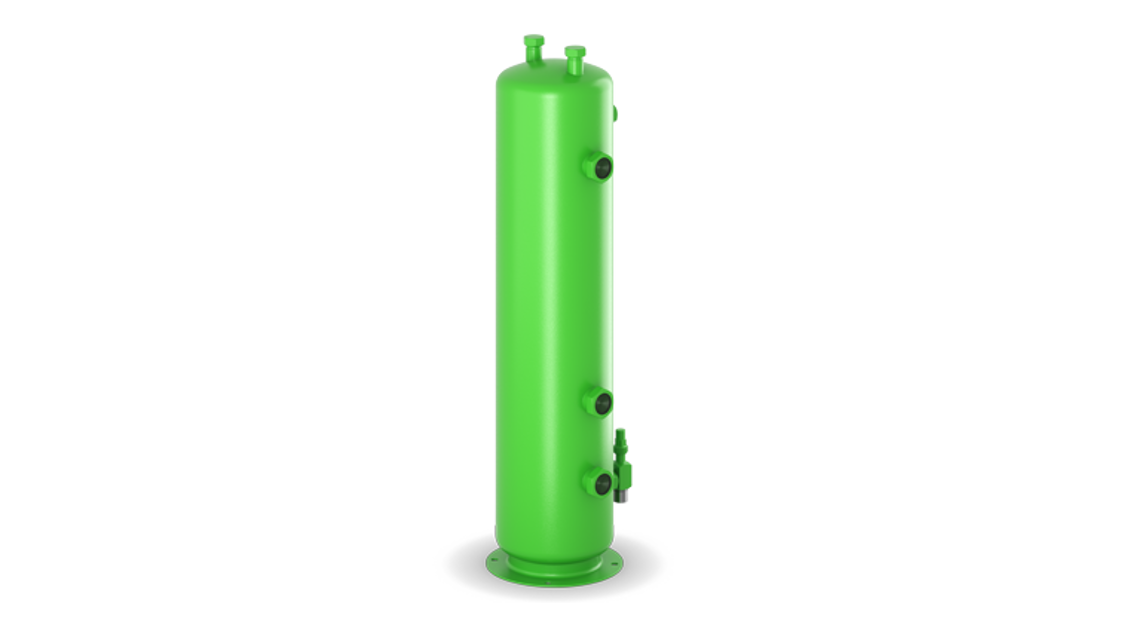

Bitzer Refrigeration Liquid Receiver FS76

Verify factory testing of pressure equipment

Test tightness of connections and pipe works

Test refrigerant circuit for tightness according to EN378-2 or equivalent standards

Enter the overpressure applied during the test

Is the test pressure within the maximum allowable values?

4.7 Mounting included accessory

Fit the accessories best before commissioning.

Connection positions for the included accessory, see chapter Connections, page 38, above.

Tightening torques of screws see chapter Mind when mounting or replacing, page 54 and following chapters.

Check pressure equipment for tightness after mounting.

Shut off all inlets and outlets of the pressure equipment into which something is to be installed.

Depressurise the pressure equipment.

Handling Flammable Refrigerants

Dispose of used oil in an environmentally friendly manner

Fill used oil into pressure resistant vessels

Fill vessels with nitrogen as a protective gas and close them

Mark vessels with the warning sign 'flammable substance' W021 from ISO7010

Check for abnormal vibrations in the whole system, particularly the pipelines and capillary tubes.

Were additional safety measures required due to vibrations?

Ensure no strong vibrations are present to avoid risk of burst pipes and leakages.

Connect the pipes to the pressure equipment without load and stress to prevent mechanical stress.

Check for blocked components and pipes

Ensure sufficient volume above the liquids

Verify use of permitted refrigerants

Measure out precise quantities of refrigerant

Keep the oil temperature above 40°C

Charge the condenser or receiver directly with liquid refrigerant

Ensure blends are taken out of the charging cylinder as a bubble-free liquid

Add refrigerant on the suction side while the compressor is running
