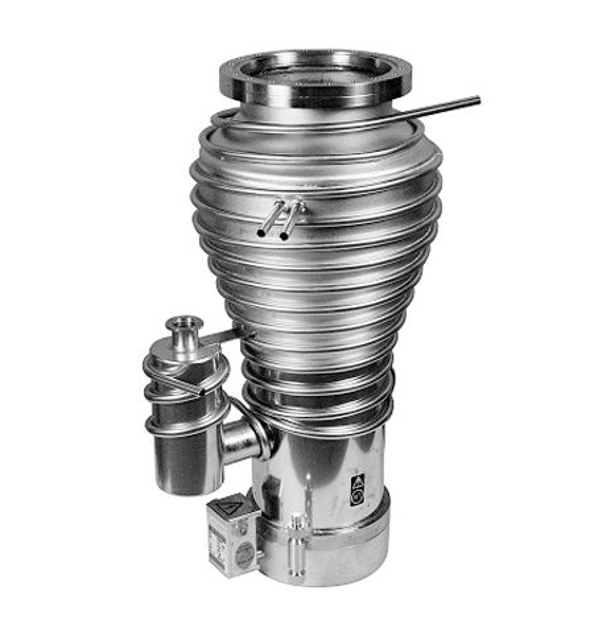

Edwards Vapour Diffusion Vacuum Pump Diffstak 100/300M
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
3 Monthly Pump Fluid-Level Check
Pre-Inspection
Is the Diffstak boiler operating at a higher than normal temperature?
Fluid-Level Check
Allow the pump to cool and open it to atmospheric pressure.
Remove the dipstick and 'O' ring.
Check the fluid-level on the dipstick.
Is the fluid-level below the notch mark?
Fluid Adjustment
Is the fluid-level low?
Interior Maintenance
Safety Precautions
Ensure all traces of the cleaning solution are removed before operating the pump.
Cleaning Preparation
Select the cleaning solution suitable for the type of pump fluid used.
Ensure the jet assembly is vapour de-greased.
Pump Interior Inspection
Inspect the pump interior for solid deposits of pump fluid around the base.
Is there a solid deposit of pump fluid around the base?
Use an ultrasonic cleaning bath to remove solid deposits if present.
Position Indicator Replacement
Removal of Damaged Position Indicators
Refer to Figure 27 and loosen the clamp screw on the valve open position indicator.
Slide the valve open position indicator down the dovetail groove and out of the cylinder.
Loosen the clamp screw on the valve closed position indicator.
Slide the valve closed position indicator down the dovetail groove and out of the cylinder.
Installation of New Position Indicators
Ensure the dovetail groove is clean.
Slide the new valve closed position indicator into the dovetail groove, ensuring correct orientation as shown in Figure 27.
Adjust the position indicator until the gap between the position indicator and the valve actuator is correct.
Position Indicator Adjustment
Adjust Valve Closed Position Indicator
Refer to Figure 27
Loosen the clamp screw (7) on the valve closed position indicator (1)
Slide the position indicator in the dovetail groove (3) until the gap (2) is correct
Apply a suitable thread sealant to the clamp screw (7)
Tighten the clamp screw to a torque of 0.4 Nm
Adjust Valve Open Position Indicator
Repeat Steps 1 to 3 for the valve open position indicator (6)
Adjust the gap (5) between the valve open position indicator and the end of the pneumatic actuator
M-Model Pump High-Vacuum Isolation-Valve Removal
Move the valve to the fully open position
Remove the screws securing the valve-plate to the shaft
Detach the valve-plate
Carefully withdraw the valve-shaft complete with its lever from the valve-body
