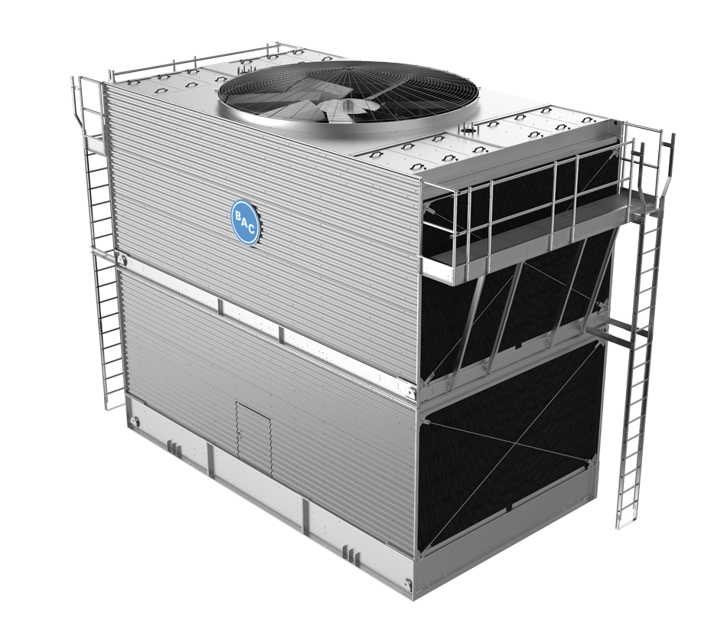

Baltimore Aircoil Company Cooling Tower 3412C

Create an account to install this asset package.

Maintenance Plans for Baltimore Aircoil Company Cooling Tower Model 3412C

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly / 2500 Hourly Gear Drive Oil Replacement

DANGER: Do not perform any service on or near the fans, motors, and drives, or inside the unit without first ensuring that the fans and pumps are disconnected, locked out, and tagged out.

Drain the oil at operating temperature through the drain plug.

Refill the gear drive through the oil fill elbow with the recommended type and amount of lubricant.

Upload a photo of the refilled gear drive.

Sign off on the gear drive oil replacement.

Run this procedure

Initial 24 Hours Belt Tension Adjustment

Belt Tension Adjustment

Lock nut on the motor base adjusting screw loosened

Direction of the motor base adjusting screw turned

Drives rotated several times by hand to evenly distribute the tension

Belt properly tensioned

Locking nut on the motor base adjusting screw retightened

Sign off on the belt tension adjustment

Run this procedure

Initial 4 Weeks / 500 Hours Gear Drive Oil Replacement

DANGER: Do not perform any service on or near the fans, motors, and drives, or inside the unit without first ensuring that the fans and pumps are disconnected, locked out, and tagged out.

Drain the oil at operating temperature through the drain plug.

Refill the gear drive through the oil fill elbow with the recommended type and amount of lubricant.

Upload a photo of the refilled gear drive.

Sign off on the oil replacement procedure.

Run this procedure

1 Yearly Cooling Tower Maintenance

Inspect and clean as necessary:

· Inspect unit finish

Mechanical equipment system:

· Check drive alignment

– Check the drive alignment annually to ensure maximum belt life.

– Place a straight edge across the driver and the driven sheaves as shown in Figure 4a for standard drives and in Figure 4b for the BALTIGUARD™ Fan System or the BALTIGUARD PLUS™ Fan System.

– The straight edge should contact all four points as shown in Figure 4a indicating that the drives are properly aligned.

– There should be no more than 1/16” deviation from the four points of contact.

– In case of realignment, loosen the motor sheave, and align it with the fan sheave. Allow 1/4” for draw-up as the bushing screw is retightened.

Run this procedure

1 Weekly Gear Drive Oil Check

DANGER: Do not perform any service on or near the fans, motors, and drives, or inside the unit without first ensuring that the fans and pumps are disconnected, locked out, and tagged out.

Check oil level weekly with the unit idle. On units supplied with an external sight gauge, check the oil level of the external sight gauge and the sight gauge on the gear drive to ensure that the proper amount of oil is in the gear drive.

If equipped with an external oil line and site gauge, check weekly to make sure the breather hole at the top of the sight gauge is open.

Sign off on the weekly gear drive oil check

Run this procedure
