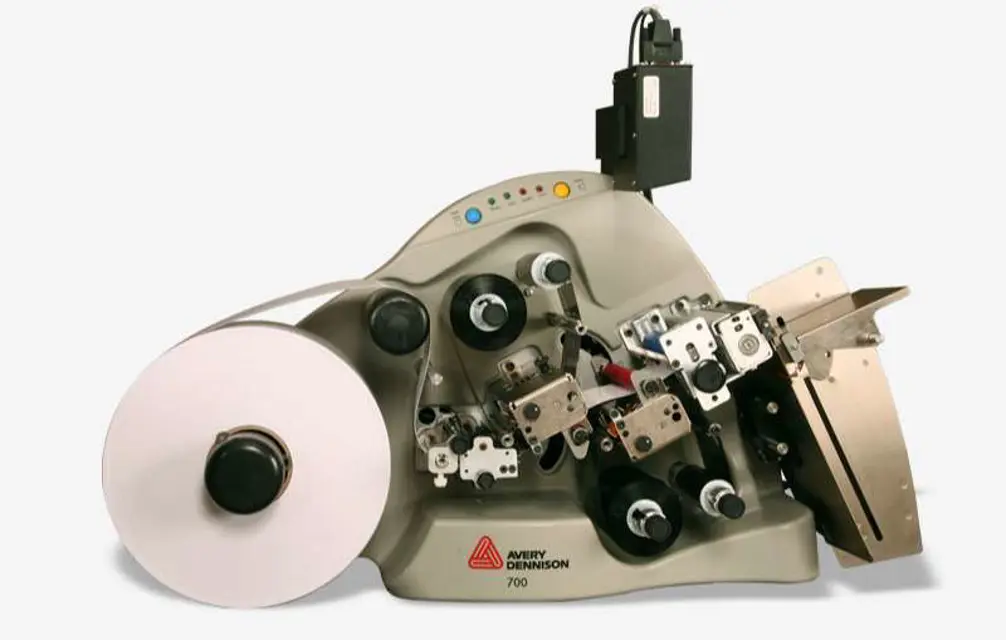

Avery Dennison Corporation Printer SNAP-700 RFID

Slide the stacker on the mounting pins to adjust its position.

Set the stacker so that the back wall is just behind the back end of the label.

Lock the stacker in position using the thumbscrew on the stacker mount bracket.

Did you adjust the stacker angle? If yes, readjust the stacker position.

Select the appropriate sensor based on label size.

Depress the top portion of the toggle switch to use the upper sensor.

Depress the bottom portion of the toggle switch to use the lower sensor.

Turn off the power to the printer to avoid personal injury.

Using the Feed Roller knob, back the stock out of the knife.

Loosen the Retaining Thumb Screw under the outboard end of the knife assembly.

Using a 3/16” Allen key or hex “T” handle key, remove the two mount screws that retain the knife to the upright frame.

Slide the knife straight out until the rotary knife is out of the motor drive coupler then lift the knife vertically avoiding damaging the stripper fingers.

Remove the knife oiler/finger guard assembly by removing the two button head screws using a 3/32” allen key.

Remove the static brush mounted under the oiler/finger guard assembly and set them aside to be reused.

Rubber Roller Replacement Procedure

Was the replacement completed successfully?

Ensure both knobs on the print head have about the same spacing from the head mount bracket.

Turn the pressure adjustment knob to increase or decrease print head pressure.

Is the pressure knob assembly properly replaced into the threaded hole?

Rotate the contrast knob clockwise to increase print density.

Rotate the contrast knob counterclockwise to decrease print density.

Is the contrast knob set to the nominal center position?

Insert a flat blade screwdriver into the slot in the end of the knife

Rotate the screwdriver counterclockwise until you hear an audible click

Continue to turn the screwdriver approximately 1/8 of a rotation more
