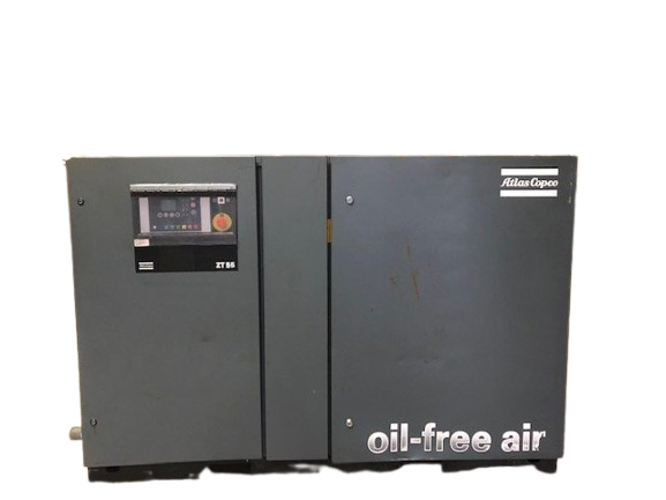

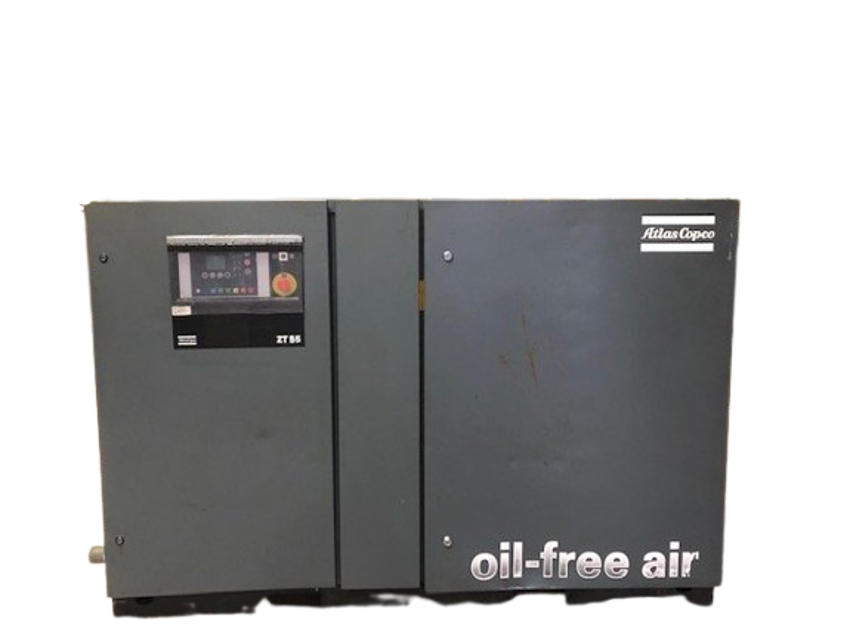

Atlas Copco Stationary Air Compressor ZR90
Need answers fast?
Explore the manual using AI.
The Atlas Copco Stationary Air Compressor ZR90 is a reliable and efficient solution for industrial air compression needs. Designed for optimal performance, this model ensures consistent air supply while minimizing energy consumption and maintenance requirements. Ideal for various applications, the ZR90 enhances productivity and operational efficiency in any facility.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Atlas Copco Stationary Air Compressor ZR90
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Atlas Copco Stationary Air Compressor ZR90
Create an account to install this asset package.
Maintenance Plans for Atlas Copco Stationary Air Compressor Model ZR90
Integrate maintenance plans directly into your work orders in MaintainX.
3600 Hourly 50Hz Motor Bearing Greasing
Warning: Do not mix greases of different types
Enter the quantity of grease used
Enter the type of grease used
Was the greasing successful?
Sign off on the motor bearing greasing
Stationary Air Compressor Air Filter Change
Compressor stopped and voltage switched off
Upload a photo of the removed filter
New filter fitted
Service warning reset after service actions
Sign off on the air filter change
1 Daily Stationary Air Compressor Check
Condensate discharged during loading?
Check oil level, should be in the middle of the sight-glass
On Full-Feature compressors, is the moisture indicator showing blue?
On Full-Feature compressors, check pressure differential of rotor compartments
Adjustments made if necessary
Sign off on the daily stationary air compressor check
3 Monthly Stationary Air Compressor Maintenance
Compressor cleaned
Any leaks detected?
Coolers checked and cleaned if necessary
For Full-Feature compressors
Demister sponge replaced
Stationary Air Compressor Safety Valve Testing
WARNING! Never run the compressor without safety valves. No adjustments are allowed
Safety valves present and functional
Enter the pressure at which the valve opened
If a valve does not open at the pressure specified in section Settings of safety valves, consult Atlas Copco.
Sign off on the safety valve testing
Parts for Atlas Copco Stationary Air Compressor ZR90
Access the parts list for your equipment in MaintainX.
Atlas Copco Roto-Z Oil 209-Litre Drum
2908 8500 00
Atlas Copco Roto-Z Oil 20-Litre Can
2908 8501 01
Atlas Copco Roto-Z Oil 209-Litre Drum
2908 8500 00
Atlas Copco Roto-Z Oil 20-Litre Can
2908 8501 01
Atlas Copco Roto-Z Oil 209-Litre Drum
2908 8500 00
Atlas Copco Roto-Z Oil 20-Litre Can
2908 8501 01
