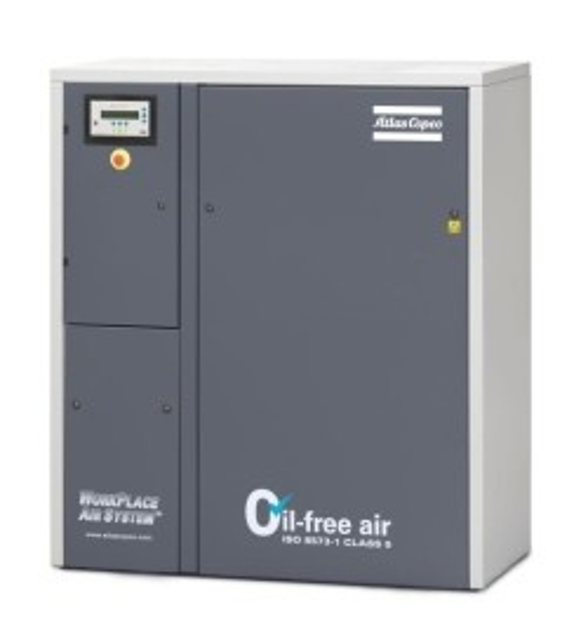

Atlas Copco Stationary Air Compressor SF2

WARNING: Stop the compressor before starting the inspection.

Upload a photo of the removed filter cover and filter

Is the filter clean and undamaged?

Did you replace a dirty or damaged filter with a new one?

NOTE: Check pressure drop over Atlas Copco filters every 500 Hours / 3 Month.

Sign off on the air filter inspection

On SF Full-Feature, brush or blow off the finned surface of the condenser

On SF Full-Feature, clean condensate trap internally

Sign off on the compressor maintenance

Warning: No adjustments are allowed. Never run the compressor without safety valve

Did the valve open at the pressure marked on the valve?

If the valve did not open, describe the issue

Did you consult Atlas Copco if the valve did not open?

Test electrical components/shut-down switch

Sign off on the safety valve testing

Remove the filter cover and filter

Fit a new filter and reinstall the cover

NOTE! Inspect ball valve mechanism of condensate trap every 5000 Hours / 1 Year

NOTE! Replace V-belt(s) every 5000 Hours / 1 Year

NOTE! Grease orbiting scroll bearing every 5000 Hours / 2 Year

Sign off on the air filter replacement
