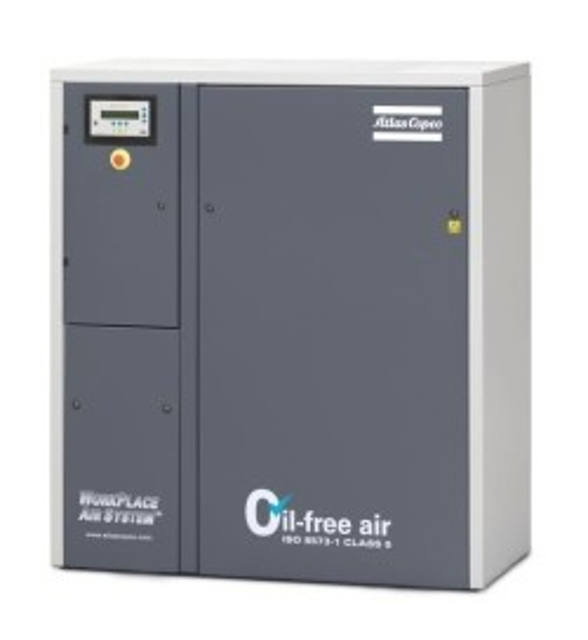

Atlas Copco Stationary Air Compressor SF 6 Twin

Warning: No adjustments are allowed. Never run the compressor without safety valve

Did the valve open at the pressure marked on the valve?

If the valve did not open, describe the issue

Did you consult Atlas Copco if the valve did not open?

Test of electrical components/shut-down switch successful?

Sign off on the safety valve testing

On SF Full-Feature, brush or blow off the finned surface of the condenser

On SF Full-Feature, clean condensate trap internally

Sign off on the compressor maintenance

Warning: Always wear protective gear while cleaning the coolers.

If not, proceed with the following steps.

Was the dirt removed using a fibre brush?

Never use a wire brush or metal objects.

Was the cooler cleaned by air jet in reverse direction of normal flow?

Is it necessary to wash the coolers with a cleansing agent?

Sign off on the cooler cleaning

Open the condensate drain valve underneath the air receiver (if provided) for a few seconds

NOTE! On SF Full-Feature, check dewpoint every 1 Day

Sign off on the daily drain condensation

Warning: No adjustments are allowed. Never run the compressor without safety valve

Safety valve operational after unscrewing the knurled cap one or two turns

Safety valve operational after retightening the cap

Sign off on the safety valve operation
