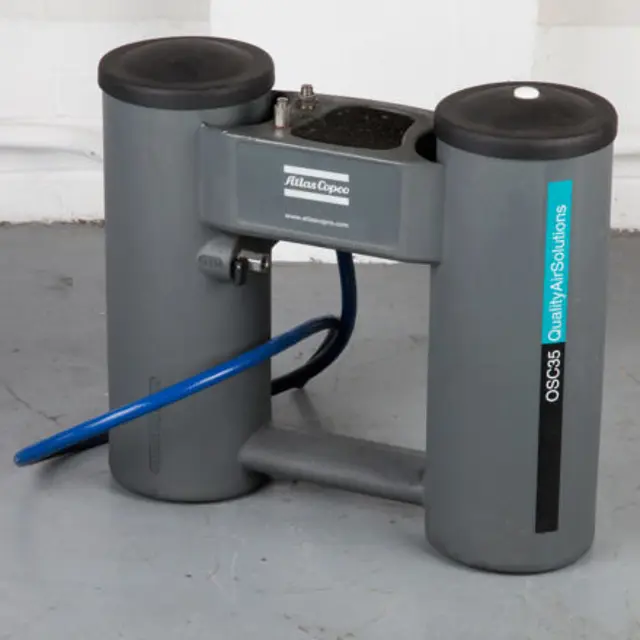

Atlas Copco Oil-Water Separator OSC35

Warning: This procedure requires trained personnel with PPE!

Service indicator approaches the lid of the housing?

Condensate from the test outlet is less transparent than in the reference test capsule?

Compressor stopped and air outlet valve closed?

Outlet piping depressurised by opening the manual condensate drain?

Upload a photo of the removed lid of the first tower and the oleophilic filter

Upload a photo of the removed lid of the second tower and the small oleophilic filter (only for OSC 355 up to OSC 1200)

If the compressor is not operational, report the issue to the maintenance team and stop the procedure.

Was the test valve opened successfully?

Was the condensate collected in the test bottle?

Compare the turbidity of the sample with the 15 ppm turbidity reference bottle

Sign off on the condensate check

Check if oleophilic filters are changed for the second time

Check if the filters are clogged

Enter the reading of the service indicator

Check if the condensate from the test outlet is less transparent than in the reference glass

Stop the compressor and close the air outlet valve

Depressurise the compressor by opening the manual condensate drain

Remove the lid of the second tower
