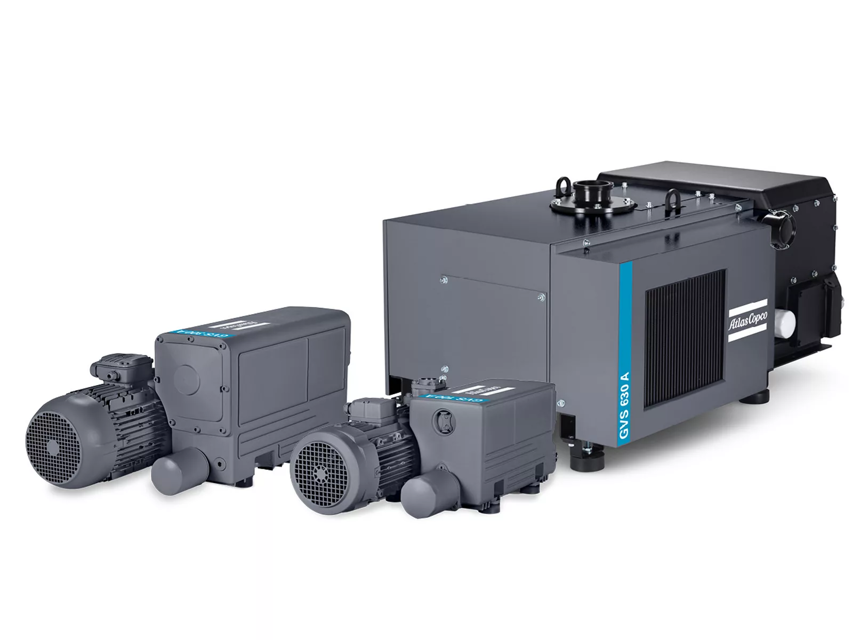

Atlas Copco Oil-Sealed Rotary Vane Vacuum Pump GVS 300A

Remove the screws of the exhaust plate using an 8 mm (0.31 inch) allen key

Lift the 3 exhaust filters from the W shaped metal sheet holder and remove them from the oil casing

Ensure the new exhaust filters have the O‐ring (opposite side of the overpressure valve) and grease them using our vacuum grease

Replace the O-ring of the exhaust plate

Insert new exhaust filters. They are guided in the oil casing correct position

Ensure the compression springs are behind the W shaped metal sheet holder

Plug the exhaust plate on the W shaped metal sheet holder with the 2 location pins and screw the exhaust plate on the oil casing using an 8 mm (0.31 inch) allen key

Sign off on the filter replacement

Radiator, motor fan guard and pump must be kept clean

Cleaned using compressed air and a dry cloth?

Be careful not to damage the oil cooler (if applicable) by cleaning with compressed air or by exerting excessive pressure with the cloth

Do not use fluids or substances other than those indicated

NOTE! Check oil level and condition every 24 Hours

NOTE! Clean dirt trap at pump inlet every 1 Month

NOTE! Clean anti suck back valve at pump inlet every 1 Year

NOTE! Check the vanes. Replace them, if needed every 5000 Hours in Harsh condition;

Sign off on the cleaning and maintenance

Remove the intake filter element from the housing

Clean the intake filter element in one of the following ways

▪ Hand washing: Soak and agitate element in a warm water and mild detergent solution. Allow adequate time for the element to air dry (24 hours minimum). Do not install a damp element. This will cause higher initial pressure loss and rapid dirt loading

▪ Compressed air cleaning: Using approximately 7 bar(e) (100 psi(g) or 5.25 Torr(e)), direct air flow at inside of element towards pleats. Blow off the outside of the element directing the air flow down to avoid embedding dirt in the media. Blow off the inside again to remove any dirt that might be on the clean side of the element

▪ Vacuum cleaning: Point the vacuum cleaner to the dirty side (outside of element) only, using a vacuum of approximately 100 mbar(a) (75 Torr(a)). A crevice tool is recommended

▪ Hand cleaning: Hold element down with one hand and move other hand across the fins in a strumming motion. This action will dislodge most of the dirt

The element is ready to be reused;

Warning: Ensure you are wearing appropriate PPE

Remove the screws of the exhaust plate using an 8 mm (0.31 inch) allen key

Lift the 3 exhaust filters from the W shaped metal sheet holder and remove them from the oil casing

Ensure that the new exhaust filters have the O‐ring (opposite side of the overpressure valve) and grease them using our vacuum grease

Replace the O-ring of the exhaust plate

Insert new exhaust filters. They are guided in the oil casing correct position

Ensure the compression springs are behind the W shaped metal sheet holder

Plug the exhaust plate on the W shaped metal sheet holder with the 2 location pins and screw the exhaust plate on the oil casing using an 8 mm (0.31 inch) allen key

Sign off on the filter replacement

Apply a thin film of oil on the gasket of the new oil filter

Clean carefully the contact surface of the gasket on the tank

Sign off on the oil filter change
