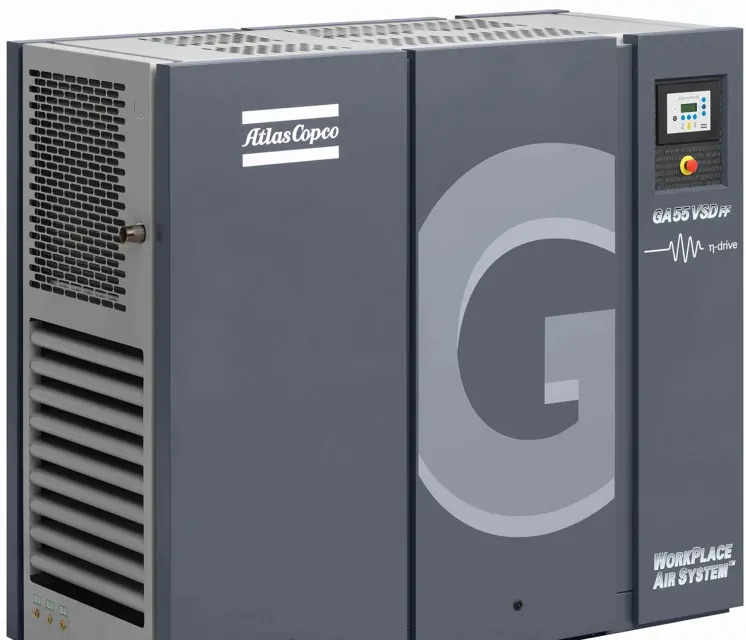

Atlas Copco Oil-injected rotary screw compressors GA55P_12

Check that condensate is discharged when pressing the test button on top of the electronic water drain.

On compressors with integrated dryer:

• Stop the compressor, close the air outlet valve and switch off the voltage.

• Remove any dirt from the condenser inlet with a vacuum cleaner.

• Next, clean with an air jet in the reverse direction of the normal flow. Use low pressure air. Keep the compressed air nozzle more than 30 cm away from the condenser to avoid damaging the of condenser fins.

• Remove dust from inside the dryer, e.g. with a vacuum cleaner.

Do not use water or solvents to clean the condenser.;

Warning: Depressurise the compressor before removing the valve

Safety valve unscrewed one or two turns and retightened

Compressor depressurised before removing the valve

Safety valve tested on a separate air line

Did the valve open at the set pressure stamped on the valve?

If the valve did not open at the set pressure, it needs to be replaced

Warning: No adjustments are allowed. Never run the compressor without safety valve

Warning: Always shut off power before servicing the unit.

Electronic water drain(s) replaced?

Enter the service kit used for replacement

For overhauling and preventive maintenance, use Atlas Copco service kits.

Select the parts replaced using the service kit

Enter the type of lubricant used

Sign off on the replacement procedure

Check air filter service indicator.

Check that condensate is discharged during operation.

On water-cooled units: check for cooling water flow.;

If Atlas Copco Roto-Xtend Duty Fluid is used, change oil and oil filter.

Have the oil separator element replaced.

Visually inspect the oil separator vessel for damage and corrosion. The minimum wall thickness must be respected. See section Pressure equipment directives.;
