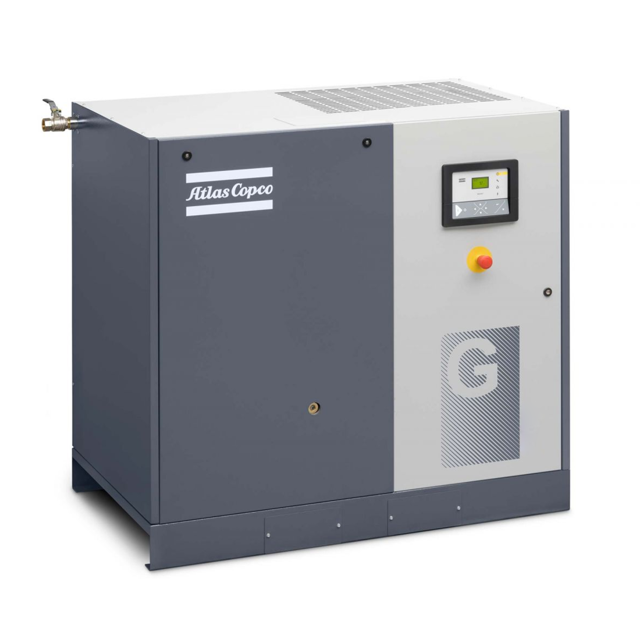

The Atlas Copco Oil-Injected Rotary Screw Compressor GA-22/ESSIC.2XBO45SPE is a reliable and efficient solution for industrial air compression needs. Designed for optimal performance, this compressor ensures minimal downtime and maintenance, making it ideal for various applications in manufacturing and production environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil-Injected Rotary Screw Compressor GA-22/ESSIC.2XBO45SPE

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Atlas Copco Oil-Injected Rotary Screw Compressor GA-22/ESSIC.2XBO45SPE

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil-Injected Rotary Screw Compressor Model GA-22/ESSIC.2XBO45SPE

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Oil-Injected Rotary Screw Compressor Maintenance

Replace DD and PD filters or whenever the pressure indicator points red (if provided)

Inspect the air receiver

Minimum wall thickness as specified in the instruction book must be respected

Local regulations remain applicable if they are more strict

Sign off on the compressor maintenance

Run this procedure

4000 Hourly / 1 Yearly Air Filter Element Replacement

Warning: Ensure the compressor is switched off and the voltage is disconnected before starting the procedure

Compressor stopped and voltage switched off

Upload a photo of the side panel before removal

Side panel removed

Upload a photo of the air filter cover before removal

Air filter cover removed by turning it anti-clockwise

Upload a photo of the removed filter element

Filter element removed

Cover cleaned if necessary

Run this procedure

8000 Hourly / 2 Yearly Safety Valve Testing

Before removing the valve, depressurize the compressor. See also section Problem solving

The safety valve (SV) can be tested on a separate air line. If the valve does not open at the set pressure stamped on the valve, it needs to be replaced

An additional safety valve is fitted on tank mounted versions. The valve can be tested on a separate air line. If the valve does not open at the set pressure stamped on the valve, it needs to be replaced

WARNING! No adjustments are allowed. Never run the compressor without safety valve;

Run this procedure

4000 Hourly / 1 Yearly Roto-Inject Fluid Replacement

Warning: This procedure requires trained personnel with PPE!

Enter the ambient temperature

Enter the element outlet temperature

Select the appropriate exchange interval based on the temperatures

Was the Roto-Inject Fluid successfully replaced?

Sign off on the Roto-Inject Fluid replacement

Run this procedure

4000 Hourly / 1 Yearly Oil Separator Replacement

WARNING! The operator must apply all relevant Safety precautions

Run the compressor until warm. Stop the compressor, close the air outlet valve and switch off the voltage. Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape

Wait 5 minutes and remove the oil separator (OS). Clean the seat on the manifold. Oil the gasket of the new separator and screw it into place. Tighten firmly by hand

Reset the service timer

For compressors equipped with an Elektronikon® regulator, see section Service warning

For compressors equipped with an Elektronikon® Graphic regulator, see section Service menu;

Run this procedure
