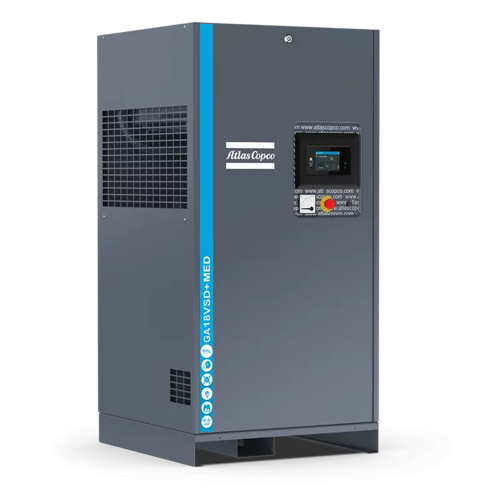

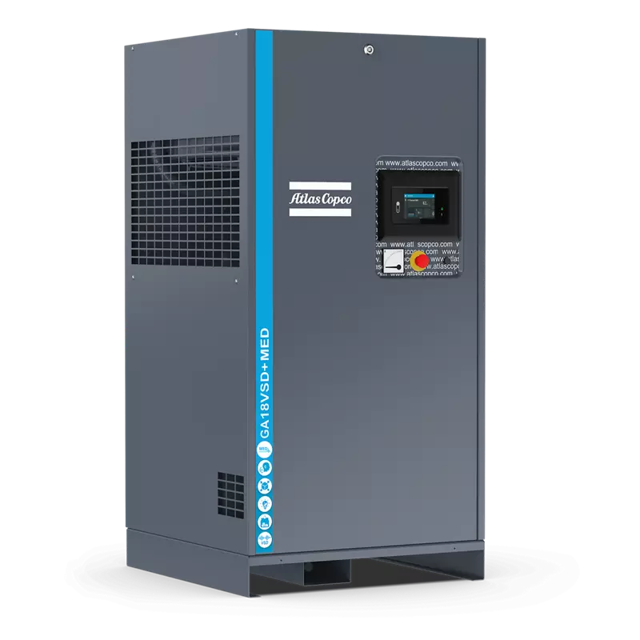

Atlas Copco Oil-Injected Rotary Screw Compressor GA 15 VSD

WARNING! The operator must apply all relevant Safety precautions

Stop the compressor, close the air outlet valve and switch off the voltage.

Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape.

Wait 5 minutes and remove the oil separator (OS).

Clean the seat on the manifold.

Oil the gasket of the new separator and screw it into place. Tighten firmly by hand.

Sign off on the oil separator replacement

Compressor stopped and voltage switched off

Cover of air filter (AF) removed by turning it anti-clockwise

Was it necessary to clean the cover?

New element and the cover fitted

Air filter service warning reset

Sign off on the air filter element replacement

Check that condensate is discharged during loaded operation

Check air filter service indicator

Check the service indicator on the DDx and PDx filters (if provided)

Replace the filter element of the electric cabinet (where applicable)

On Pack compressors: remove, dismantle and clean float valve of condensate trap

Replace V-belts every 8000 Hours

Have air inlet valve and minimum pressure valve inspected by Atlas Copco every 8000 Hours

Sign off on the compressor maintenance

Compressor stopped and air outlet valve closed

Front panel and right panel removed

Enter the force F needed to create a deflection of 5 mm (0.2 in)

Sign off on the belt tensioning and replacement
