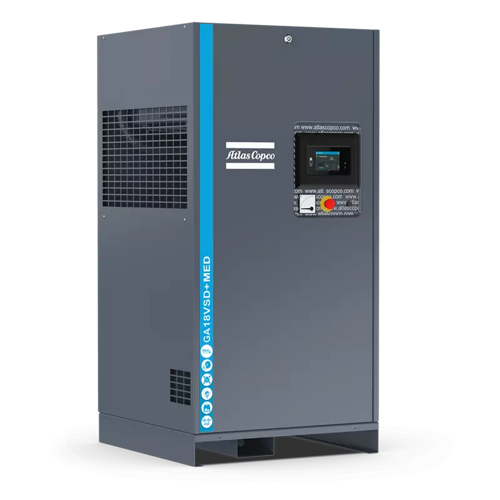

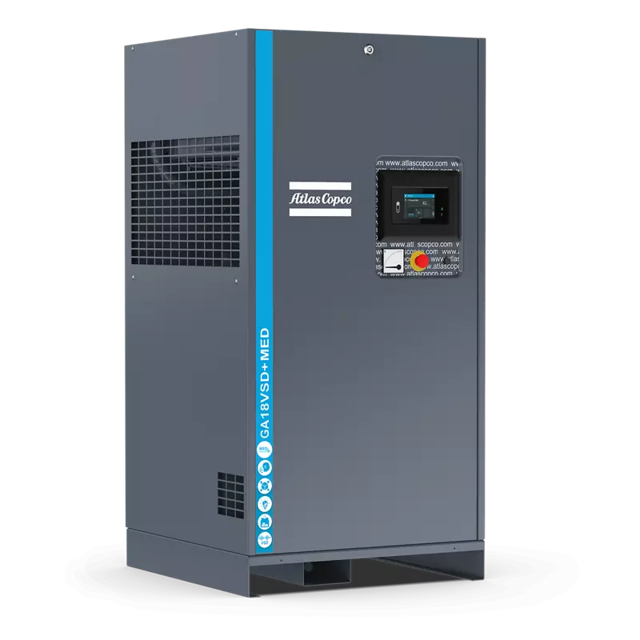

Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

Need answers fast?
Explore the manual using AI.

Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED
Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil-Injected Rotary Screw Compressor Model GA 11 VSD MED

Integrate maintenance plans directly into your work orders in MaintainX.

3 Monthly Oil-Injected Rotary Screw Compressor Maintenance

Check mark

Check coolers, clean if necessary

Check mark

Remove the air filter element. Clean using an air jet and inspect. Replace damaged or heavily contaminated elements

Check mark

Check the filter element of the electric cabinet (where applicable). Replace if necessary

Check mark

Test temperature shut-down function every 1 Year

Check mark

Test safety valve every 1 Year

Run this procedureArrow right

4000 Hourly Oil Separator Replacement

Check mark

WARNING! The operator must apply all relevant Safety precautions

Check mark

Run the compressor until warm.

Check mark

Stop the compressor, close the air outlet valve and switch off the voltage.

Check mark

Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape.

Check mark

Wait 5 minutes and remove the oil separator (OS).

Check mark

Clean the seat on the manifold.

Check mark

Oil the gasket of the new separator and screw it into place. Tighten firmly by hand.

Check mark

Reset the service timer.

Check mark

Sign off on the oil separator replacement

Run this procedureArrow right

4000 Hourly Oil and Oil Filter Replacement

Check mark

WARNING! The operator must apply all relevant Safety precautions

Check mark

Always drain the compressor oil at all drain points. Used oil left in the compressor can contaminate the oil system and can shorten the lifetime of the new oil

Check mark

Never mix lubricants of different brands or types as they may not be compatible and the oil mix will have inferior properties. A label, indicating the type of oil filled ex-factory, is stuck on the air receiver/oil tank

Check mark

Run the compressor until warm. Stop the compressor. Close the air outlet valve and switch off the voltage

Check mark

Depressurise the compressor by opening manual drain valve(s) (Dm, Dm1). Wait a few minutes and depressurise the air receiver/oil tank (OT) by unscrewing oil filler plug (FC) just one turn to permit any pressure in the system to escape

Check mark

Drain the oil by opening valve (OD)

Check mark

Collect the oil and deliver it to the local collection service. Refit and tighten the drain and vent plugs after draining

Check mark

Remove the oil filter (OF). Clean the seat on the manifold. Oil the gasket of the new filter and screw it into place. Tighten firmly by hand

Check mark

Remove filler plug (FC)

Run this procedureArrow right

1 Daily Oil-Injected Rotary Screw Compressor Check

Check mark

Check oil level

Check mark

Check readings on display

Check mark

Check that condensate is discharged during loaded operation

Check mark

Drain condensate

Check mark

Check air filter service indicator

Check mark

Check the service indicator on the DDx and PDx filters (if provided)

Run this procedureArrow right

4000 Hourly Oil-Injected Rotary Screw Compressor Maintenance

Check mark

Replace the filter element of the electric cabinet (where applicable)

Check mark

Check pressure readings

Check mark

Check temperature readings

Check mark

Carry out a LED/display test

Check mark

Check for leakages

Check mark

On Pack compressors: remove, dismantle and clean float valve of condensate trap

Check mark

Replace V-belts every 8000 Hours

Check mark

Have air inlet valve and minimum pressure valve inspected by Atlas Copco every 8000 Hours

Check mark

Sign off on the compressor maintenance

Run this procedureArrow right

Parts for Atlas Copco Oil-Injected Rotary Screw Compressor GA 11 VSD MED

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Safety Valve IV

2202 8891 01

Safety Valve IV

2202 8891 02

Safety Valve IV

2202 8891 03

Safety Valve IV

2202 8891 01

Safety Valve IV

2202 8891 02

Safety Valve IV

2202 8891 03

Safety Valve IV

2202 8891 01

Safety Valve IV

2202 8891 02

Safety Valve IV

2202 8891 03
