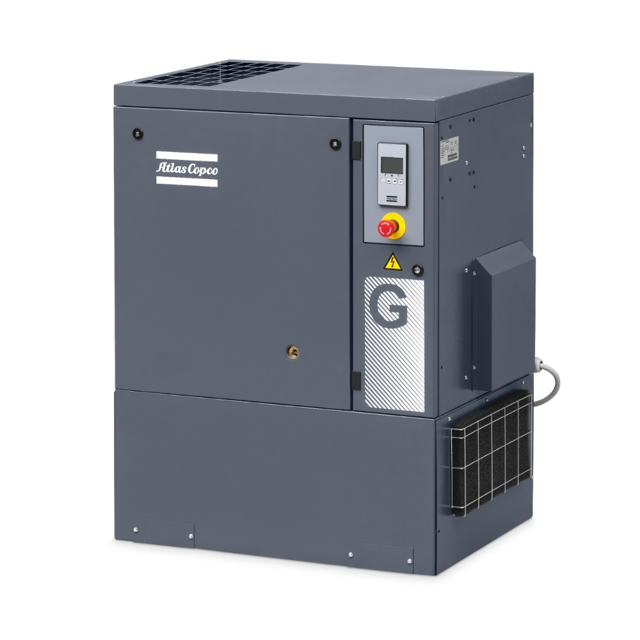

Atlas Copco Oil-Injected Rotary Screw Compressor G15P

After stopping, drain the condensate from the air receiver

For condensate draining use manual drain valve

Warning: Ensure the compressor is stopped and the voltage is switched off before proceeding

Front door and internal panel removed

Measure the force and deflection

Refer to the sticker on the frame for the values to be measured

Sign off on the belt tension check

WARNING! The belts must be replaced as a set, even if only one of the belts is worn. Only use genuine Atlas Copco belts.

Stop the compressor, close the air outlet valve and switch off the voltage

Remove the front door, the internal panel, the top cover, the pulley protection and the left side panel

Release the belt tension by loosening tensioning nut

Tension belts as described above

Inspect the condenser of the dryer; clean if necessary

Have the operation of sensors, electrical interlockings and components checked

Have the temperature shut-down switch tested.

The air receiver must no longer be used and must be replaced if the wall thickness is less than the minimum value, specified in the technical documentation of the air receiver;

Sign off on the compressor maintenance

Compressor stopped and air outlet valve closed

Front door, internal panel, top cover and pulley protection removed

Belt tension adjusted by turning tensioning nut

Force and deflection measurement

Sign off on the belt tension adjustment
