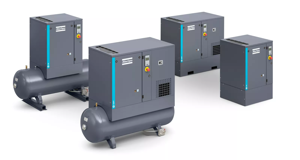

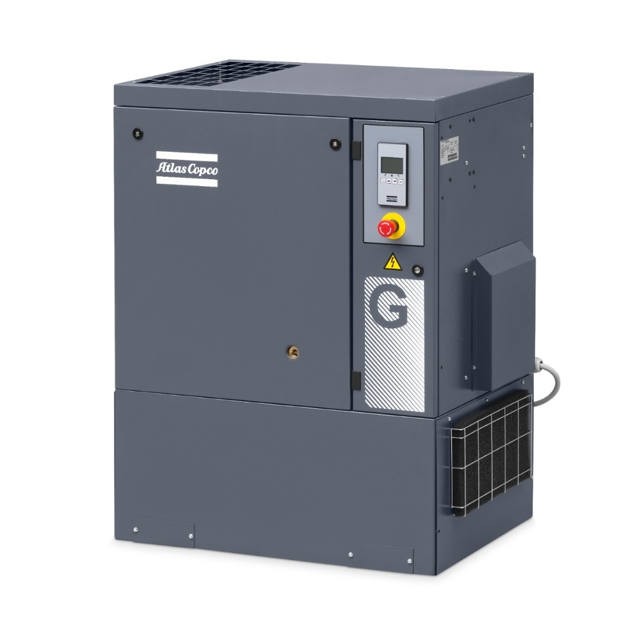

Atlas Copco Oil-Injected Rotary Screw Compressor G15

Warning: Never use a wire brush or metal objects for cleaning

Oil cooler clean and free of dirt?

Upload a photo of the cleaned oil cooler

Sign off on the oil cooler cleaning

Stop the compressor, close the air outlet valve and switch off the voltage

Depressurise the compressor by unscrewing filler plug one turn to permit any pressure in the system to escape

Remove the plug after the system is depressurised

Depressurise the air receiver by opening drain valve

Remove plug, drain the oil by opening drain valve

Close the valve and refit the plug after draining

Deliver the drained oil to the local oil collection service

Remove oil filter and separator

Remove any dirt from the air cooler (Ca)

Avoid using a wire brush or metal objects

Sign off on the air cooler cleaning

Warning: Ensure the compressor is stopped and the air outlet valve is closed.

Depressurised by unscrewing oil filler plug one turn?

Depressurised the filter by opening its drain valve (for floor-mounted units)?

Depressurised the air receiver by opening condensate drain valve (if fitted)?

Warning: A whistling noise will warn you if the bowl is not fully depressurised. If this occurs, the bowl should be screwed back and the venting should be repeated.

Removed and discarded the filter element?

Cleaned the bowl and replaced its O-ring?

Drain the condensate from the air receiver after stopping

Use manual drain valve for condensate draining
