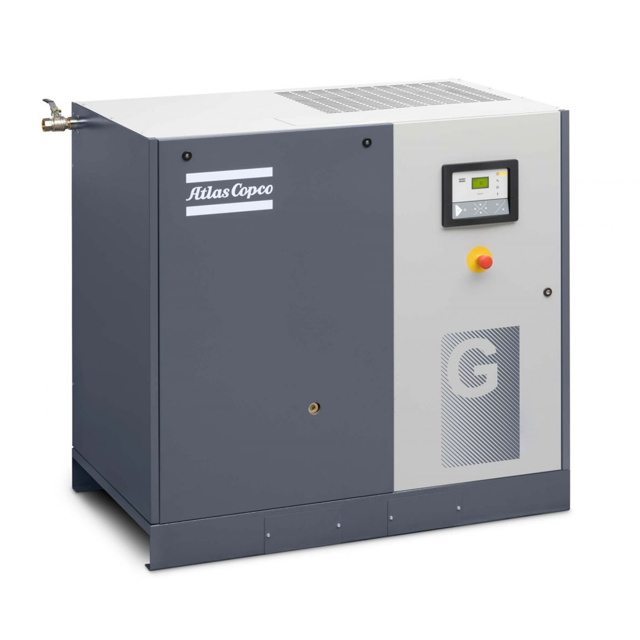

Atlas Copco Oil-Injected Rotary Screw Compressor 8153178275

CAUTION! Never use a high pressure water jet to clean the compressor

Stop the compressor, close the air outlet valve and switch off the voltage

Cover all parts under the coolers

Remove any dirt from the coolers with a fibre brush. Never use a wire brush or metal objects

Next, clean with an air jet in the reverse direction to normal flow. Use low pressure air. If necessary, the pressure may be increased up to 6 bar(e) (87 psig)

Is it necessary to wash the coolers with a cleaning agent?

If it is necessary to wash the coolers with a cleaning agent, consult Atlas Copco

Sign off on the coolers cleaning

Refrigeration dryers of ID type contain refrigerant HFC. When handling refrigerant, all applicable safety precautions must be observed.

Contact of refrigerant with the skin will cause freezing. Special gloves must be worn. If contacted with the skin, the skin should be rinsed with water. On no account may clothing be removed.

Fluid refrigerant will also cause freezing of the eyes; always wear safety glasses.

Refrigerant is harmful. Do not inhale refrigerant vapours. Check that the working area is adequately ventilated.

Be aware that certain components such as the refrigerant compressor and the discharge pipe can become quite hot (up to 110 °C - 230 °F). Therefore, wait until the dryer has cooled down before removing the panels.

Before starting any maintenance or repair work, switch off the voltage and close the air inlet and outlet valves.

Did you follow all the safety precautions?

Sign here to confirm that you have followed all the safety precautions.

Before removing the valve, depressurize the compressor. See also section Problem solving

The safety valve (SV) can be tested on a separate air line. If the valve does not open at the set pressure stamped on the valve, it needs to be replaced

An additional safety valve is fitted on tank mounted versions. The valve can be tested on a separate air line. If the valve does not open at the set pressure stamped on the valve, it needs to be replaced

WARNING! No adjustments are allowed. Never run the compressor without safety valve;

Warning: This procedure requires trained personnel with PPE!

Select the ambient temperature range

Select the element outlet temperature range

Based on the selected temperature ranges, follow the appropriate exchange interval

Ambient temperature - up to 25 °C -- Element outlet temperature - up to 90 °C: Exchange interval is 4000 Hours / 1 Year

Ambient temperature - from 25 °C up to 35 °C -- Element outlet temperature - from 90 °C up to 100 °C: Exchange interval is 3000 Hours / 1 Year

Ambient temperature - more than 35 °C -- Element outlet temperature - more than 100 °C: Exchange interval is 2000 Hours / 1 Year

Was the Roto-Inject Fluid successfully replaced?

Sign off on the Roto-Inject Fluid replacement

Replace DD and PD filters or whenever the pressure indicator points red (if provided)

Minimum wall thickness as specified in the instruction book must be respected

Local regulations remain applicable if they are more strict

Sign off on the compressor maintenance
