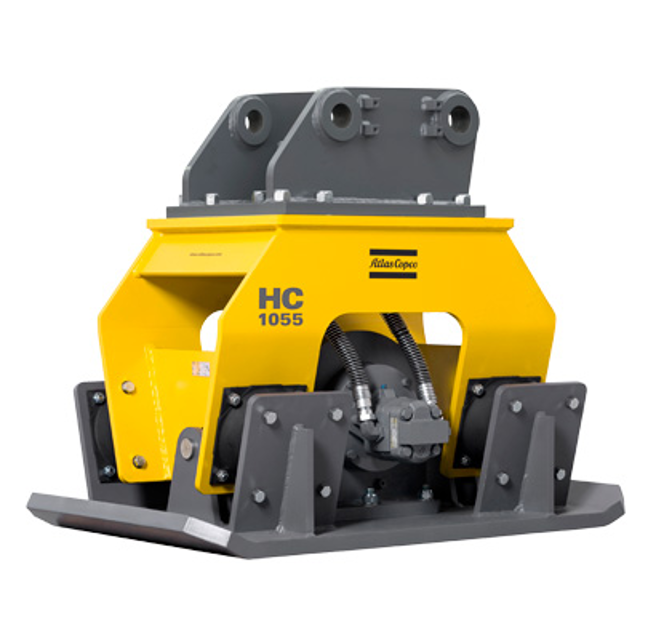

Atlas Copco Hydraulic Compactor HC1055

Check that the pipe clamps on the carrier are tight

Check the rubber isolators for cracks

Tighten the screw connections every day

NOTE! Replace the oil filter cartridges after the first 50 operating hours

NOTE! Check the oil filter and replace as required every 500 Hours

Clean the hydraulic compactor if dirt adhering to the tool impedes visual checksof theparts (hoses, rubber isolators etc.)

NOTICE! Environmental damage due to polluted water

Hydraulic oil and cutter grease are environmentally harmful and must not penetrate the ground or enter the water table or water supplies

Collect the water used for cleaning if it has been contaminated by hydraulic oil and cutter grease

Dispose of the water in accordance with the applicable regulations to avoid environmental hazards

♦ Deposit the hydraulic compactor on level ground

♦ Secure the carrier such that it cannot move unexpectedly

Hydraulic compactor not attached

Warning: This check requires trained personnel with PPE!

Has the hydraulic attachment been removed from the carrier?

If the hydraulic attachment has not been removed, skip the next steps

Check the adapter plate bolts for excessive wear such as cracks, pitting or severe erosion

Sign off on the adapter plate bolt check

Carrier secured and cannot move unexpectedly

Visual inspection of all lines from the pump to the hydraulic attachment and back to the tank performed

Loose bolted connections and hose clamps tightened to the required torque

Damaged pipes and/or hoses replaced

Sign off on the hydraulic line check

Check the adapter plate for cracks

Check the outer and rotor housings for cracks

Report any rework activities or repairs needed

Consult the Atlas Copco Customer Center/Dealer in your area if major damage is found

Sign off on the weekly adapter plate check
