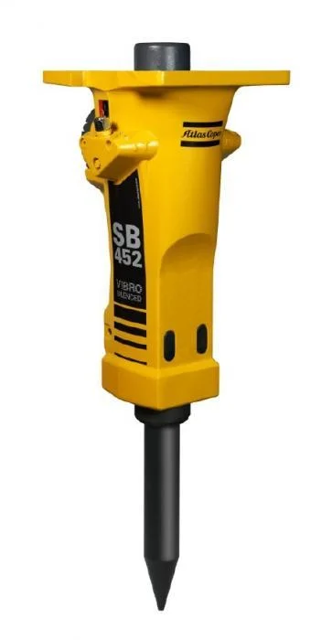

Atlas Copco Hydraulic Breaker SB452

Warning: This procedure requires trained personnel with PPE!

If bushing is worn out, proceed with the following steps

Upload a photo of the worn out bushing

Was the bushing successfully removed with a sliding hammer?

Upload a photo of the cleaned bore and bushing seat area

Was the bushing lubricated and mounted?

Upload a photo of the bushing inserted with a plastic sledgehammer

Check tool retainers and lock pin

Check that hoses, couplings and accumulator are in a good condition

Check that bolts and connections are free from damage and properly tightened. See tightening torques in the spare parts list

Refill the central lubricating system

Warning: Overhauling should for safety reasons be performed by authorised personnel

Overhauling should be done at the nearest Atlas Copco workshop or by other Atlas Copco authorised workshops

Is the Hydraulic Breaker operational?

If the Hydraulic Breaker is not operational, report the issues to the maintenance team and stop the procedure

Choose the type of service done

Hydraulic Breaker's hour meter reading

Hydraulic Breaker passed the post-overhaul test?

Sign off on the Hydraulic Breaker overhaul

Warning: Hot working tool during operation and a period of time after use. Avoid contact with the working tool.

Caution: Skin eczema. Grease can cause eczema when it comes in contact with the skin. Avoid getting grease on your hands.

Push the tool all the way into the breaker up to the stop.

Lubricate the working tool's shank plentifully during all upward operations.

The bushing and the working tool must be lubricated so frequently that dirt cannot penetrate into the hydraulic breaker.

When the tool shank is exposed to high pressure and high temperatures a standard type of grease will melt and run. To avoid this always use Atlas Copco Tool chisel paste.

Sign off on the hydraulic breaker lubrication

Warning: This maintenance check requires trained personnel with PPE!

Clean the hydraulic breaker carefully

Check the tool bushing wear and maximum inner wear limits

The tool bushing must be replaced when the inner diameter (A) has reached its maximum wear limit, see 'Wear limits' and 'Replacing the working tool bushing'

Check the working tool for wear

The working tool must be replaced when the outer diameter (B) has reached its minimum wear limit. See 'Wear limits'

Too big a clearance can make the working tool break and the piston can be damaged

Check the breaker body and the adapter plate for cracks and wear

Check that the accumulator screws are properly tightened. Correct tightening torque is found in the spare parts list
