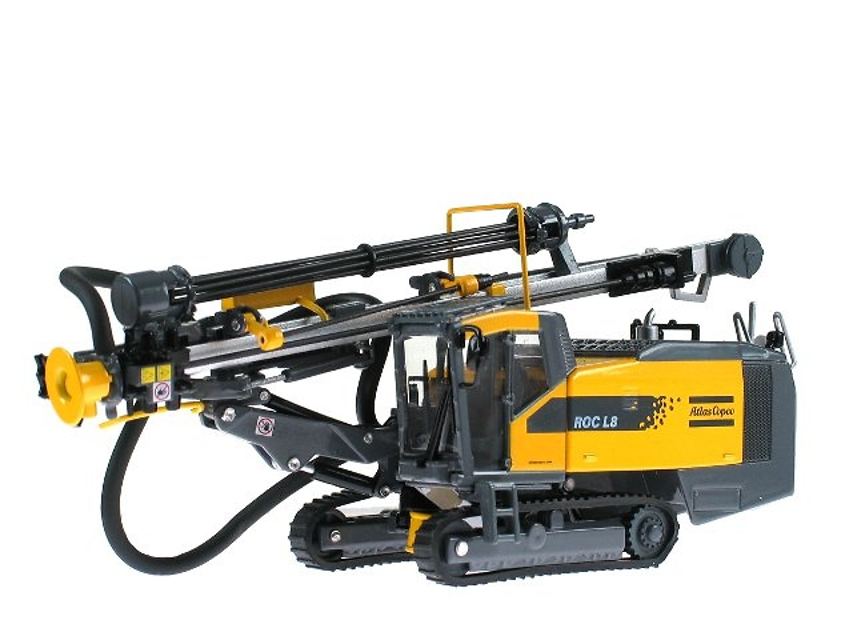

Atlas Copco Drill Rig ROC L8

Check for leakage around the engine and compressor

Check for signs of leakage in hydraulic pumps

Drain off water in fuel prefilter

Check Oil level in diesel engine

Check the Lubricating oil HECL/ECL/ECGl level

Check the grease level for central lubrication

Check the thread level for central lubrication

Warning: Cleaning should be done by trained personnel only

Rotating the cyclone and opening the cover plate

Two hatches on the intermediate chamber

Jones riffle splitter inspection hatch

Swinging the cone splitter out of the way

Warning: Rotary actuators, cylinders and shafts must not be cleaned with high-pressure washing

Sign off on the daily rig cleaning

Grease filled into the grease nipples

Cylinder bracket, breakout table torque

Cylinder bracket, pipe guide torque

Lock nut for adjusting screw, pipe guide torque

Sign off on the daily breakout table/rod guide service

Check that the lubricating pressure does not deviate from the percussion pressure

Is the needle on the pressure gauge in the red zone?

If the needle on the pressure gauge is in the red zone, then the return oil filter must be replaced

Contact a service technician if the needle is in the red zone

Sign off on the daily pressure gauge inspection

Warning: Ensure the drill rig has been standing still for one hour before proceeding

Sign off on the compressor tank draining
