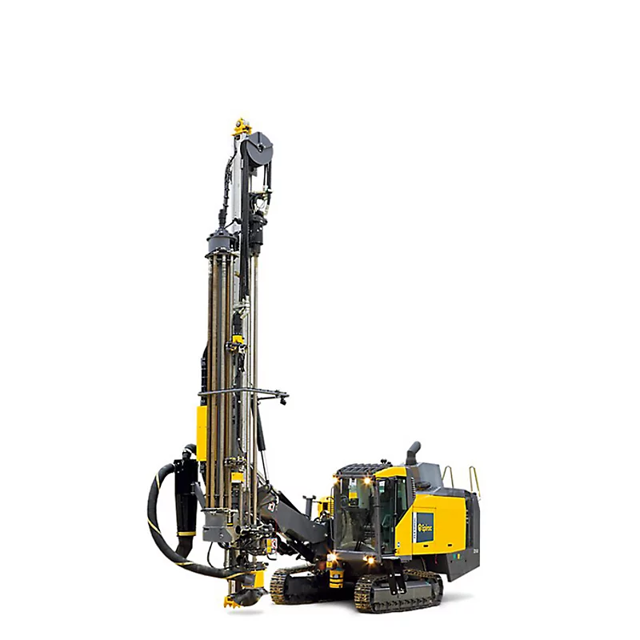

Atlas Copco Drill Rig D65

Check for leakage around the engine and compressor

Check for signs of leakage in hydraulic pumps

Drain off water in fuel prefilter

Check Oil level in diesel engine

Check the Lubricating oil HECL/ECL/ECGl level

Check the grease level for central lubrication

Check the thread level for central lubrication

Warning: Ensure the drill rig has been standing still for one hour before starting this procedure

Sign off on the compressor tank draining

Instructions for checking the oil level

Has the drill rig been standing still for 10 minutes?

Is the gauge in the green zone?

Sign off on the oil level check

Check each emergency stop button individually

Before checking the next emergency stop button the previous one must be reset before restarting

Check that no fault indicator symbols come on

If a fault indicator shows in the status field, stop the drill rig and rectify the fault

Sign off on the emergency stop button check

Check if the lubricating pressure deviates from the percussion pressure

Is the needle on the pressure gauge in the red zone?

If the needle is in the red zone, the return oil filter must be replaced

Contact details of the service technician

Sign off on the pressure gauge inspection
