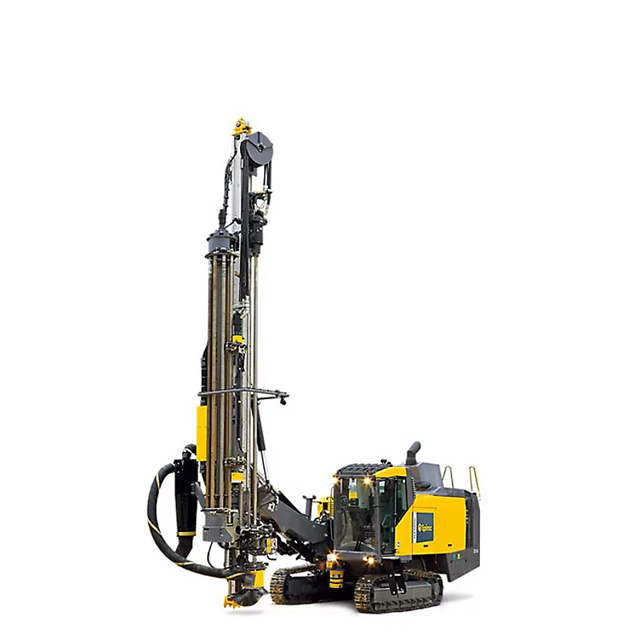

Atlas Copco Drill Rig D60

Check for leakage around the engine and compressor

Check for signs of leakage in hydraulic pumps

Drain off water in fuel prefilter

Check Oil level in diesel engine

Check the Lubricating oil HECL/ECL/ECGl level

Check the grease level for central lubrication

Check the thread level for central lubrication

Warning: Cleaning should take place at the end of the work shift

Rotated the cyclone and opened the cover plate?

Opened two hatches on the intermediate chamber?

Opened Jones riffle splitter inspection hatch?

Swung the cone splitter out of the way?

Warning: Rotary actuators, cylinders and shafts must not be cleaned with high-pressure washing

Did you avoid cleaning rotary actuators, cylinders and shafts with high-pressure washing?

Sign off on the daily drill rig cleaning

Check if the lubricating pressure deviates from the percussion pressure

Is the needle on the pressure gauge in the red zone?

If the needle is in the red zone, replace the return oil filter

Contact a service technician if needed

Sign off on the pressure gauge inspection

Warning: Ensure the drill rig has been standing still for one hour before proceeding

Sign off on the compressor tank draining
