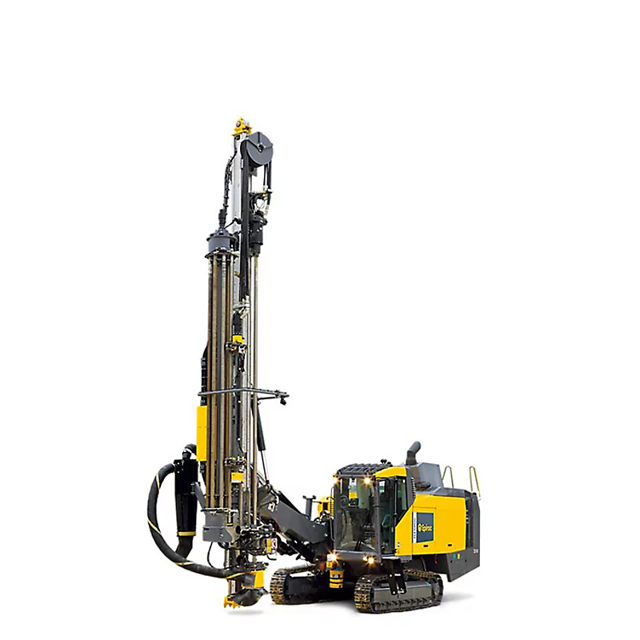

Atlas Copco Drill Rig D50

Check for leakage around the engine and compressor

Check for signs of leakage in hydraulic pumps

Drain off water in fuel prefilter

Check Oil level in diesel engine

Check the Lubricating oil HECL/ECL/ECGl level

Check the grease level for central lubrication

Check the thread level for central lubrication

Check each emergency stop button individually

Before checking the next emergency stop button the previous one must be reset before restarting

Check that no fault indicator symbols come on

If a fault indicator shows in the status field, stop the drill rig and rectify the fault

Sign off on the emergency stop button check

Has the drill rig been standing still for 10 minutes?

Is the gauge in the green zone?

Sign off on the daily compressor tank oil level check

Cleaning the system should take place at the end of the work shift

Rotating the cyclone and opening the cover plate

Two hatches on the intermediate chamber

Jones riffle splitter inspection hatch

Swinging the cone splitter out of the way

Rotary actuators, cylinders and shafts must not be cleaned with high-pressure washing, because any penetrating water may damage the components

Sign off on the cleaning procedure
