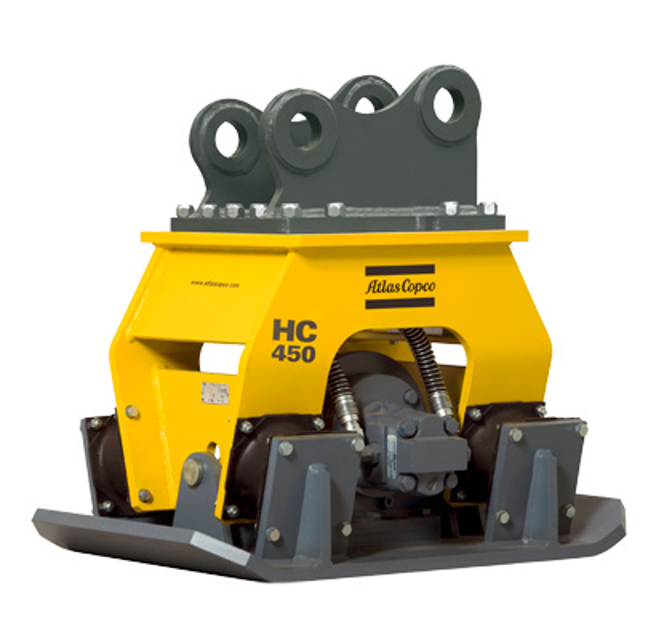

Atlas Copco Atlas Copco Hydraulic Compactor HC450 HC450

Warning: This check requires trained personnel with PPE!

Has the hydraulic attachment been removed from the carrier?

If the hydraulic attachment has not been removed, skip the next steps

Check the adapter plate bolts for excessive wear such as cracks, pitting or severe erosion

Sign off on the adapter plate bolt check

Check the adapter plate for cracks

Check the outer and rotor housings for cracks

Have rework activities or repairs carried out in time to avoid major damage

Consult the Atlas Copco Customer Center/Dealer in your area

Sign off on the weekly adapter plate check

Clean the hydraulic compactor if dirt adhering to the tool impedes visual checksof theparts (hoses, rubber isolators etc.)

NOTICE! Environmental damage due to polluted water

Hydraulic oil and cutter grease are environmentally harmful and must not penetrate the ground or enter the water table or water supplies

Collect the water used for cleaning if it has been contaminated by hydraulic oil and cutter grease

Dispose of the water in accordance with the applicable regulations to avoid environmental hazards

♦ Deposit the hydraulic compactor on level ground

♦ Secure the carrier such that it cannot move unexpectedly

Hydraulic compactor not attached

Check the adapter plate bolts for wear;

Check that the pipe clamps on the carrier are tight

Check the rubber isolators for cracks

Tighten the screw connections every day

NOTE! Replace the oil filter cartridges after the first 50 operating hours

NOTE! Check the oil filter and replace as required every 500 Hours

Sign off on the daily hydraulic compactor service
