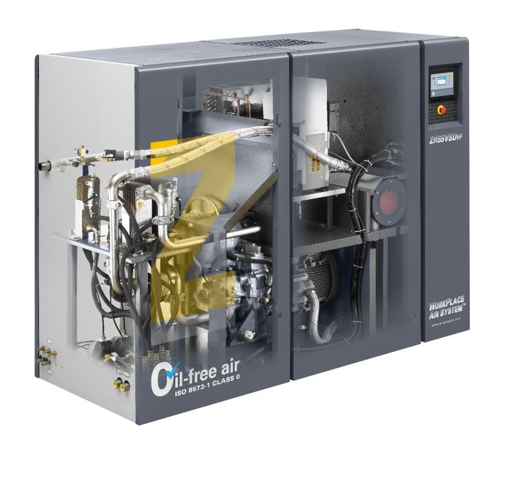

Atlas Copco Stationary Air Compressor ZT37

Need answers fast?
Explore the manual using AI.

Atlas Copco Stationary Air Compressor ZT37
Atlas Copco Stationary Air Compressor ZT37

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Stationary Air Compressor ZT37

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Atlas Copco Stationary Air Compressor ZT37

Atlas Copco Stationary Air Compressor ZT37

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Stationary Air Compressor Model ZT37

Integrate maintenance plans directly into your work orders in MaintainX.

Stationary Air Compressor Oil and Oil Filter Change

Check mark

Run the compressor until warm

Check mark

Stop the compressor and switch off the voltage

Check mark

Remove filler plug (FC). Drain the compressor sump by opening drain valve (Dmo). Close the valve after draining

Check mark

Remove the oil filter (OF). Clean the filter seat, oil the gasket of the new filter and screw it into place until the gasket contacts the seat. Then tighten by hand

Check mark

Fill the compressor sump to the middle of the oil level sight-glass (SG) with oil

Check mark

Switch on the voltage

Check mark

Run the compressor for a few minutes. Stop the compressor. If necessary, top up the gear casing with oil to the middle of the sight-glass (SG)

Check mark

After carrying out the maintenance operations of the related service plan, the service warning must be reset

Check mark

Sign off on the oil and oil filter change

Run this procedureArrow right

3 Monthly Stationary Air Compressor Maintenance

Check mark

Compressor cleaned

Check mark

Checked for possible leaks

Check mark

Coolers checked and cleaned if necessary

Check mark

Enter the air compressor's hour meter reading

Check mark

Sign off on the air compressor maintenance

Run this procedureArrow right

Stationary Air Compressor Safety Valve Testing

Check mark

WARNING! Never run the compressor without safety valves. No adjustments are allowed.

Check mark

Safety valves present and functional

Check mark

Enter the pressure at which the valve opens

Check mark

If a valve does not open at the pressure specified in section 7.2, consult Atlas Copco.

Check mark

Sign off on the safety valve testing

Run this procedureArrow right

8 Hourly / 1 Daily Stationary Air Compressor Display Check

Check mark

Warning: Always check the display and remedy the trouble if alarm LED is alight or blinks.

Check mark

Is the main screen indicating the compressor outlet pressure?

Check mark

Is the status of the compressor displayed?

Check mark

Are the functions of the keys below the display working?

Check mark

Is there a service message displayed?

Check mark

Describe the service message if any.

Check mark

Did you carry out the service actions of the indicated plans or replace the component and reset the relevant timer?

Check mark

Consult your Atlas Copco Customer Centre if you are unable to carry out the service actions.

Check mark

Did you check the actual compressor status by pressing the ↓ key from the main screen?

Run this procedureArrow right

1 Daily Stationary Air Compressor Check

Check mark

Condensate discharged during loading?

Check mark

Enter the oil level

Check mark

Before starting, the level should be in the middle of the sight-glass

Check mark

Sign off on the daily stationary air compressor check

Run this procedureArrow right

Parts for Atlas Copco Stationary Air Compressor ZT37

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Atlas Copco Roto-Z Oil 5-Litre Can

2908 8503 00

Safety Valve IV

830 1008 30

Safety Valve IV

830 1000 78

Atlas Copco Roto-Z Oil 20-Litre Can

2908 8501 01

Atlas Copco Roto-Z Oil 209-Litre Drum

2908 8500 00

Atlas Copco Roto-Z Oil 5-Litre Can

2908 8503 00

Safety Valve IV

830 1008 30

Safety Valve IV

830 1000 78

Atlas Copco Roto-Z Oil 20-Litre Can

2908 8501 01

Atlas Copco Roto-Z Oil 209-Litre Drum

2908 8500 00

Atlas Copco Roto-Z Oil 5-Litre Can

2908 8503 00

Safety Valve IV

830 1008 30

Safety Valve IV

830 1000 78

Atlas Copco Roto-Z Oil 20-Litre Can

2908 8501 01

Atlas Copco Roto-Z Oil 209-Litre Drum

2908 8500 00
